P50 Series

Catalog

CONN SOCKET 30POS R/A GOLD

Part	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Number of Positions	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Color	Insulation Material	Contact Finish - Mating	Insulation Height	Insulation Height	Shrouding	Number of Positions Loaded	Contact Material	Termination	Fastening Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]
3M Electronic Specialty P50-030S-RR1-TG	2	6.99 mm	0.275 in	0.05 in	1.27 mm	Board Lock Flange	0.25 Ám	10 Áin	Socket Outer Shroud Contacts	Gold	30	Right Angle Through Hole
3M Electronic Specialty P50-040S-R1-EA	2	10.7 mm	0.421 in	0.05 in	1.27 mm	Board Lock Flange	0.25 Ám	10 Áin	Socket Outer Shroud Contacts	Gold	40	Through Hole
3M Electronic Specialty P50-068S-R1-EA	2	10.7 mm	0.421 in	0.05 in	1.27 mm	Board Lock Flange	0.25 Ám	10 Áin	Socket Outer Shroud Contacts	Gold	68 positions	Through Hole
3M Electronic Specialty P50-030PG-S1-TGF	2	11.7 mm	0.461 in	0.05 in	1.27 mm	Ground Pin				Gold	30	Through Hole
3M Electronic Specialty P50-080S-RR1-EA	2	6.99 mm	0.275 in	0.05 in	1.27 mm	Board Lock Flange	0.25 Ám	10 Áin	Socket Outer Shroud Contacts	Gold	80	Right Angle Through Hole

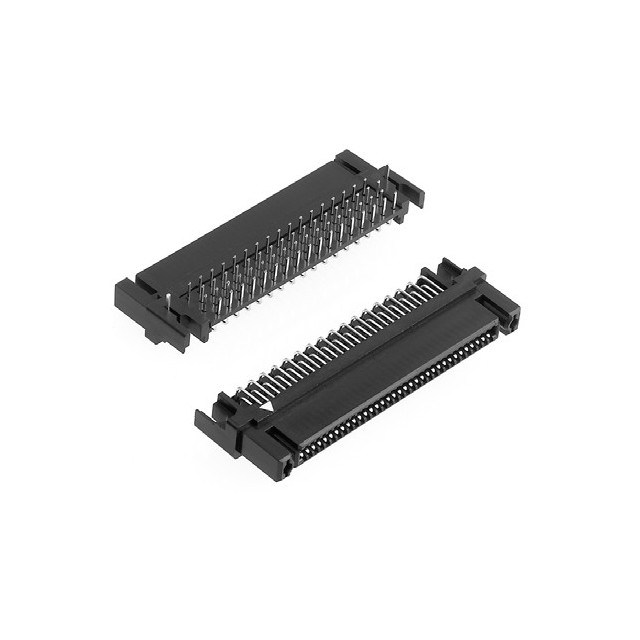

3M Electronic Specialty P50-020SG-SR1-EA	2	6.99 mm	0.275 in	0.05 in	1.27 mm	Ground Pin	0.25 Ám	10 Áin	Socket Outer Shroud Contacts	Gold	20	Right Angle Through Hole
3M Electronic Specialty P50-020PG-S1-EA	2	11.7 mm	0.461 in	0.05 in	1.27 mm	Ground Pin	0.25 Ám	10 Áin		Gold	20	Through Hole
3M Electronic Specialty P50-100S-R1-EA	2	10.7 mm	0.421 in	0.05 in	1.27 mm	Board Lock Flange	0.25 Ám	10 Áin	Socket Outer Shroud Contacts	Gold	100	Through Hole
3M Electronic Specialty P50-030P1-RR1-EA	2					Board Lock			Plug		30	Right Angle Through Hole	Flash	0.25 µm	10 µin	Board to Board Cable	Center Strip Contact	1.27 mm	0.05 in	Gold	Black	Glass Filled Nylon Polyamide (PA)	Gold	0.276 in	7 mm	Shrouded - 4 Wall	All	Phosphor Bronze	Solder	Latch Holder	0.118 in	3 mm	UL94 V-0	0.5 A	-55 C	85 °C
3M Electronic Specialty P50-050P-RR1-EA	2	6.99 mm	0.275 in	0.05 in	1.27 mm	Board Lock Flange	0.25 Ám	10 Áin		Gold	50	Right Angle Through Hole
