146868 Series

Catalog

CONN HEADER VERT 25000POS 2.54MM

Part	Connector Type	Insulation Color	Number of Rows	Number of Positions	Style	Contact Type	Number of Positions Loaded	Mounting Type	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post	Current Rating (Amps)	Material Flammability Rating	Fastening Type	Overall Contact Length	Overall Contact Length	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Shrouding

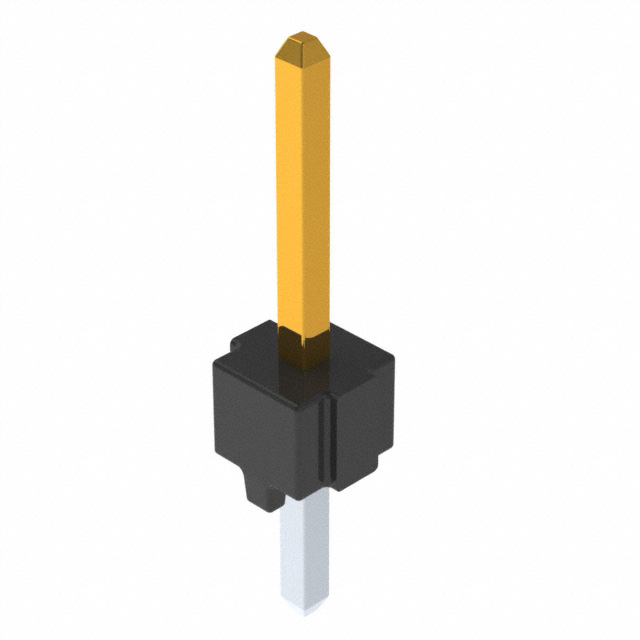

TE Connectivity Raychem Cable Protection 5-146868-1	Breakaway Header	Black	1	Cuttable	Board to Board Cable	Male Pin	All	Through Hole	Tin	0.11 in	2.79 mm	3 A	UL94 V-0	Push-Pull	0.44 in	11.18 mm	Thermoplastic	Copper Alloy	2.54 µm	100 µin	Gold	Square	0.23 in	5.84 mm	30 Áin	0.76 Ám	Solder	0.1 in	2.54 mm	-65 ░C	105 ░C	0.1 in	2.54 mm	Unshrouded
