395-065 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 65POS 0.100
| Part | Termination Rows | Material - Insulation | Mounting Type | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Card Type | Number of Rows | Features | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Color | Gender | Number of Positions | Contact Material | Termination | Number of Positions/Bay/Row | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

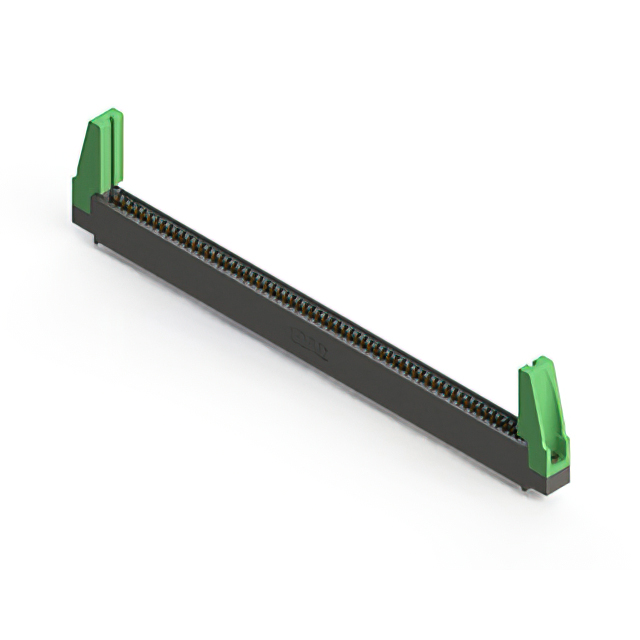

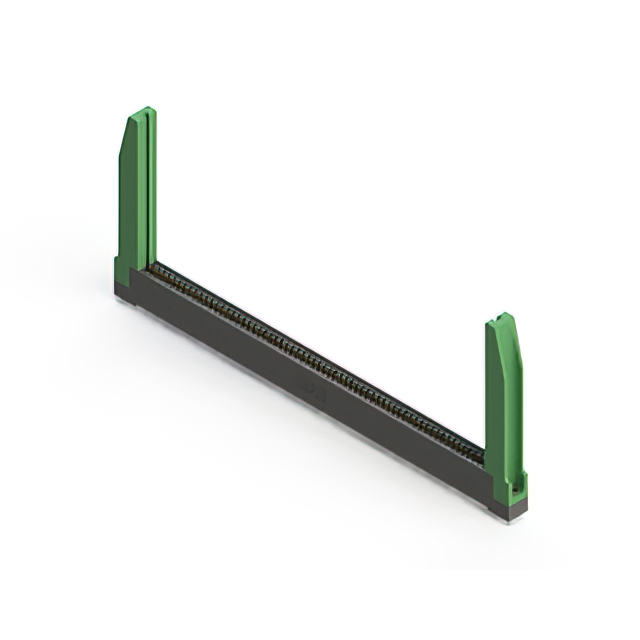

 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Non Specified - Single Edge | 1 | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 65 | Copper Alloy | Solder | 65 | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Non Specified - Single Edge | 1 | Side Mount Opening Unthreaded | 0.25 Ám | 10 Áin | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 65 | Copper Alloy | Solder | 65 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Non Specified - Single Edge | 1 | Side Mount Opening Unthreaded | 0.25 Ám | 10 Áin | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 65 | Copper Alloy | Wire Wrap | 65 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Non Specified - Single Edge | 1 | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 65 | Copper Alloy | Solder | 65 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Non Specified - Single Edge | 1 | 0.25 Ám | 10 Áin | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 65 | Copper Alloy | Solder | 65 | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Right Angle Through Hole | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Non Specified - Single Edge | 1 | Side Mount Opening Unthreaded | 0.25 Ám | 10 Áin | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 65 | Copper Alloy | Solder | 65 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Non Specified - Single Edge | 1 | 0.25 Ám | 10 Áin | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 65 | Copper Alloy | Wire Wrap | 65 | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Non Specified - Single Edge | 1 | M3 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 65 | Copper Alloy | Solder | 65 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Non Specified - Single Edge | 1 | Side Mount Opening Unthreaded | 0.25 Ám | 10 Áin | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 65 | Copper Alloy | Solder | 65 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Through Hole | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Non Specified - Single Edge | 1 | 0.25 Ám | 10 Áin | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Black | Female | 65 | Copper Alloy | Solder | 65 | 0.156 " | 3.96 mm |
