88S171 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN ADAPT 1.6/5.6 PLUG - BNC JA
| Part | Body Material | Center Contact Material | Body Finish | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Convert From (Adapter End) | Center Contact Plating | Impedance | Style | Adapter Series | Convert To (Adapter End) | Frequency - Max [Max] | Adapter Type | Mounting Type | Fastening Type | Fastening Type | Conversion Type | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

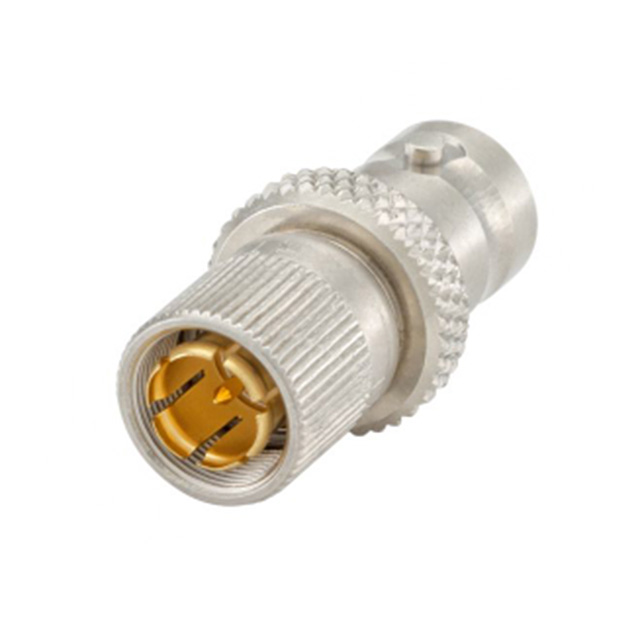

 Rosenberger | Beryllium Copper Brass | Beryllium Copper | Gold Nickel | 500 | 85 °C | -40 C | Liquid Crystal Polymer Polytetrafluoroethylene | 1.6/5.6 Plug Male Pin | Gold | 75 Ohms | Straight | BNC to 1.6/5.6 | BNC Jack Female Socket | 4 GHz | Plug to Jack | Free Hanging (In-Line) | Threaded | Bayonet Lock | Between Series | |

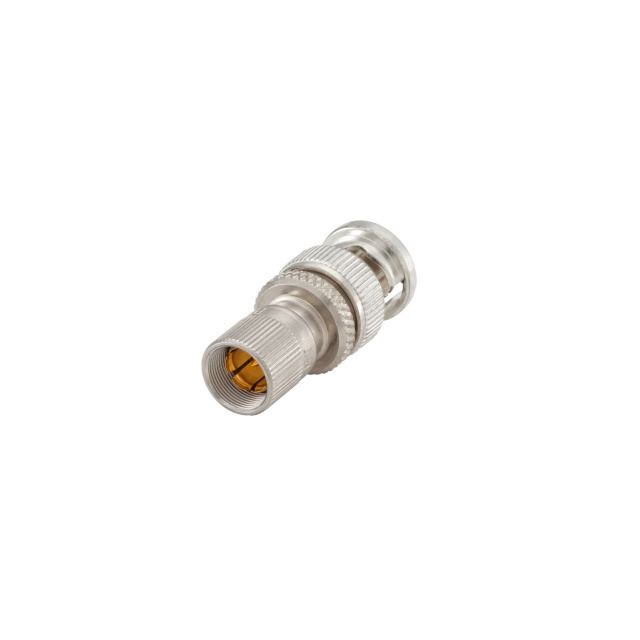

 Rosenberger | Beryllium Copper Brass | Brass | Gold Nickel | 500 | 85 °C | -40 C | Liquid Crystal Polymer Polytetrafluoroethylene | BNC Plug Male Pin | Gold | 75 Ohms | Straight | BNC to 1.6/5.6 | 1.6/5.6 Plug Male Pin | 4 GHz | Plug to Plug | Free Hanging (In-Line) | Threaded | Bayonet Lock | Between Series | Male to Male |
