9050J Series

Catalog

RELAY TIME DELAY 120SEC 10A 240V

Part	Timing Adjustment Method	Delay Time [Min]	Delay Time [Max]	Voltage - Supply	Relay Type	Circuit	Contact Rating @ Voltage	Mounting Type	Timing Initiate Method	Function	Termination Style	Voltage - Supply
SCHNEIDER ELECTRIC 9050JCK24V20	Hand Dial	1.2 Sec	120 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	Socketable	Input Voltage	Off-Delay	Plug In

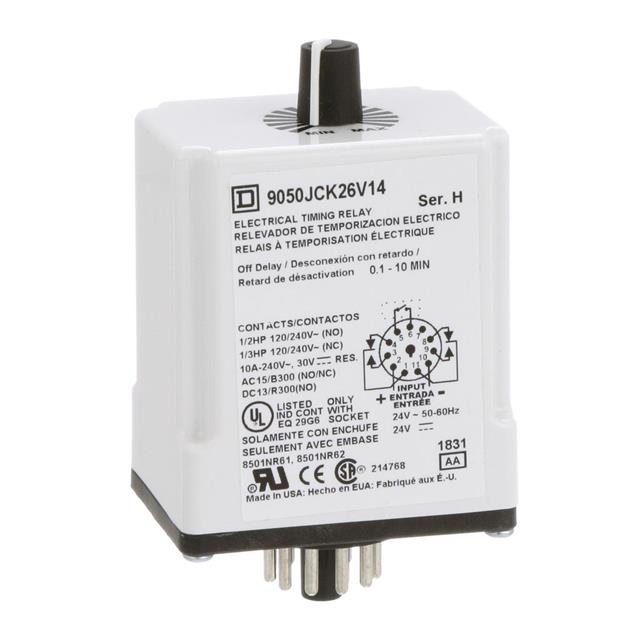

SCHNEIDER ELECTRIC 9050JCK26V14	Hand Dial	0.1 Min	10 Min	24 VAC	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	Socketable	Input Voltage	Off-Delay	Plug In

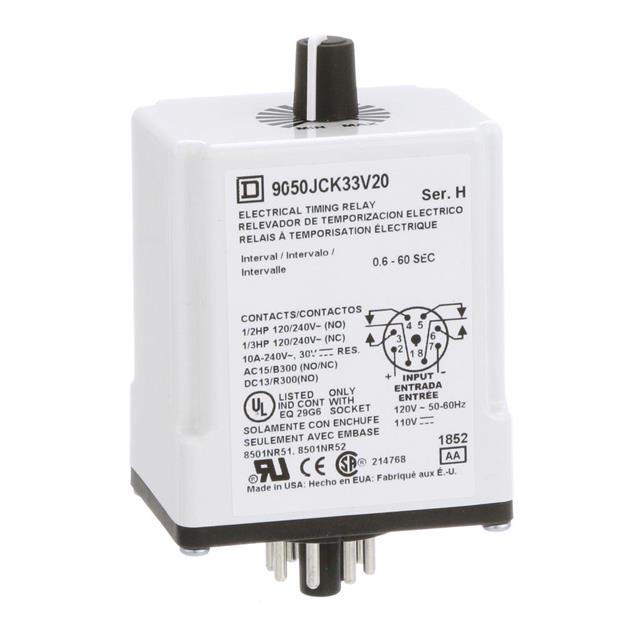

SCHNEIDER ELECTRIC 9050JCK33V20	Hand Dial	0.6 Sec	60 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	Socketable	Input Voltage	Interval	Plug In

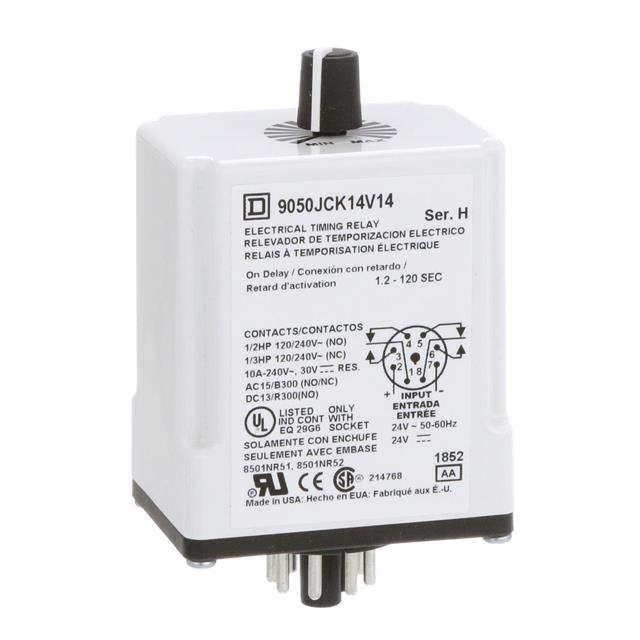

SCHNEIDER ELECTRIC 9050JCK14V14	Hand Dial	1.2 Sec	120 Sec	24 VAC	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	Socketable	Input Voltage	On-Delay	Plug In
SCHNEIDER ELECTRIC 9050JCK26PTV20	Hand Dial	0.1 Min	10 Min		Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	Socketable	Input Voltage Trigger Signal	Off-Delay	Plug In	120VAC/DC
SCHNEIDER ELECTRIC 9050JCK16V20	Hand Dial	0.1 Min	10 Min	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	Socketable	Input Voltage	On-Delay	Plug In

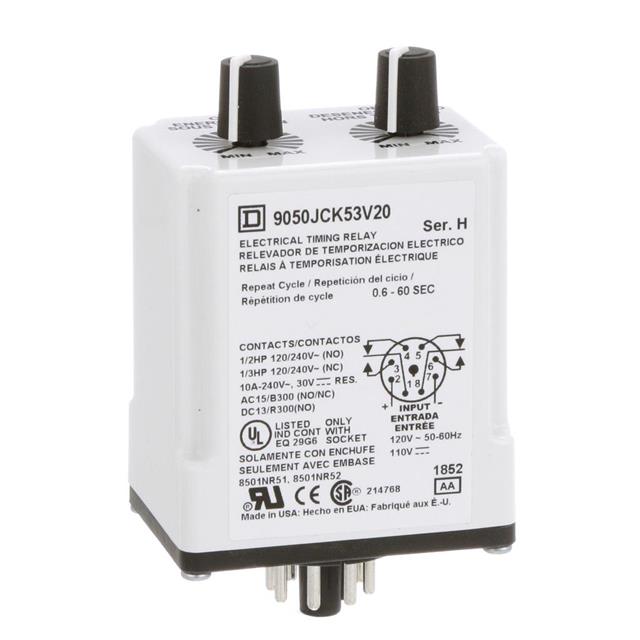

SCHNEIDER ELECTRIC 9050JCK53V20	Hand Dial	0.6 Sec	60 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	Socketable	Input Voltage	Repeat Cycle	Plug In

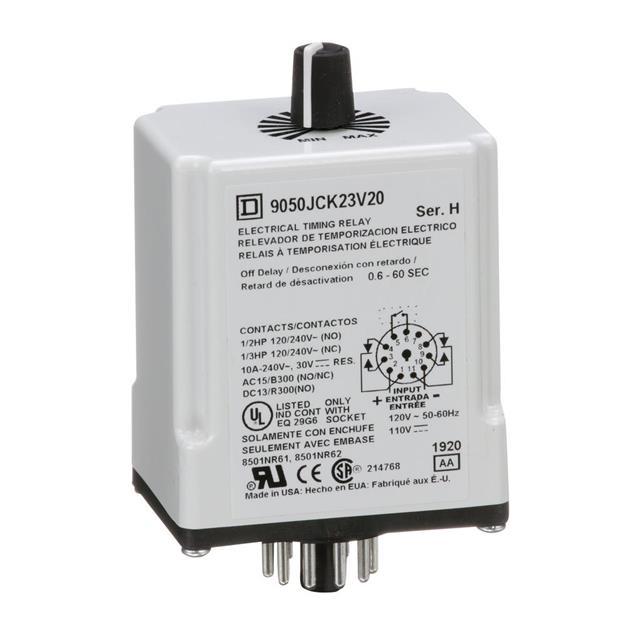

SCHNEIDER ELECTRIC 9050JCK23V20	Hand Dial	0.6 Sec	60 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	Socketable	Input Voltage	Off-Delay	Plug In

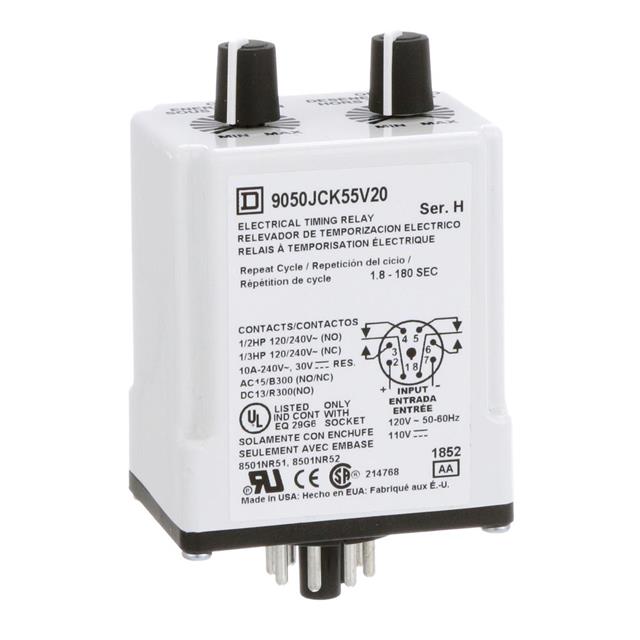

SCHNEIDER ELECTRIC 9050JCK55V20	Hand Dial	1.8 Sec	180 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	Socketable	Input Voltage	Repeat Cycle	Plug In

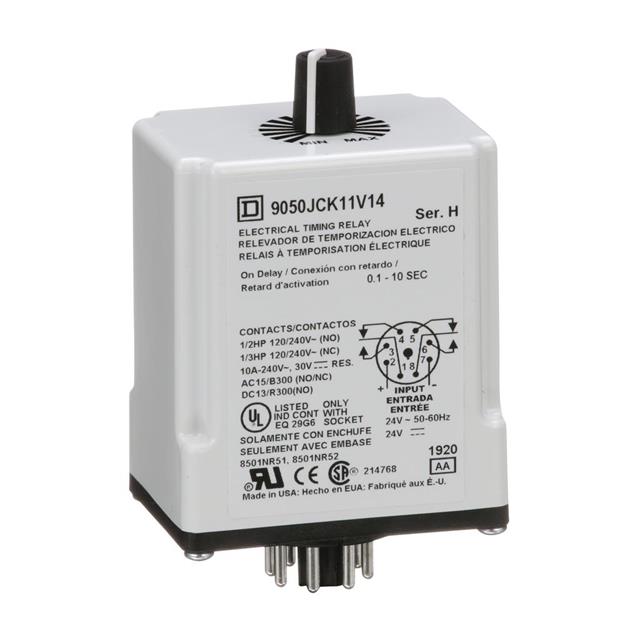

SCHNEIDER ELECTRIC 9050JCK11V14	Hand Dial	0.1 Sec	10 s	24 VAC	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	Socketable	Input Voltage	On-Delay	Plug In
