CC45 Series

Catalog

CERAMIC DISC CAPACITORS D: 5.5MM 3KV 18PF SL 5% LS:7.5MM

Part	Capacitance	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Features	Lead Style	Voltage - Rated	Voltage - Rated	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Package / Case	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

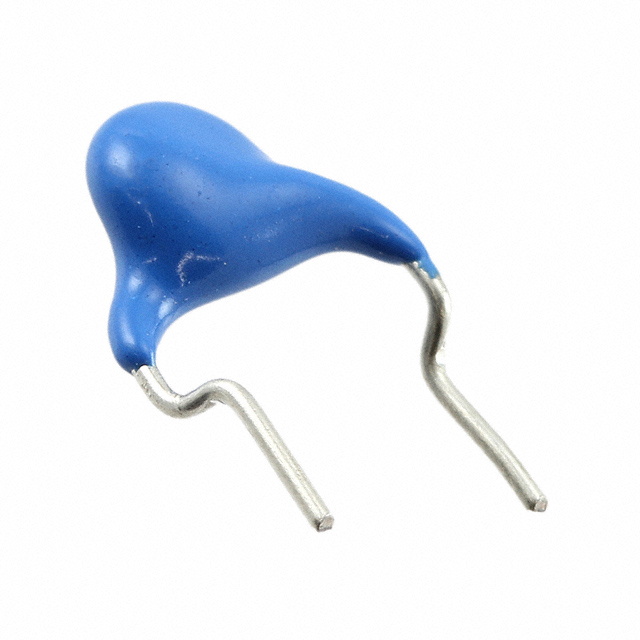

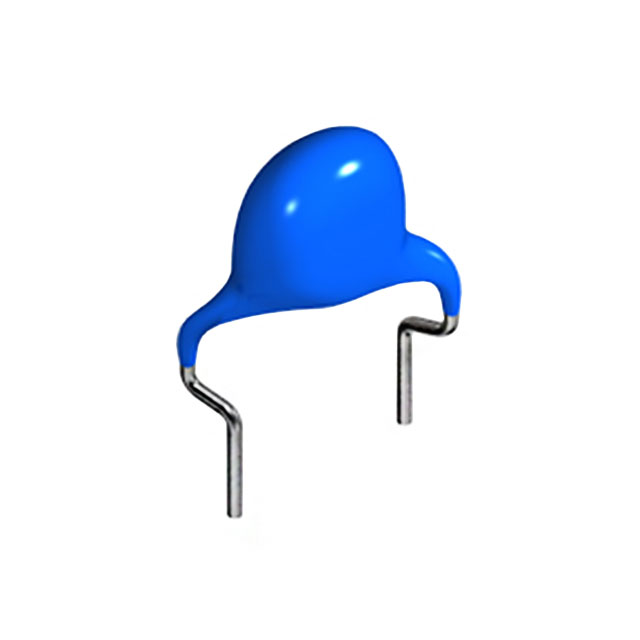

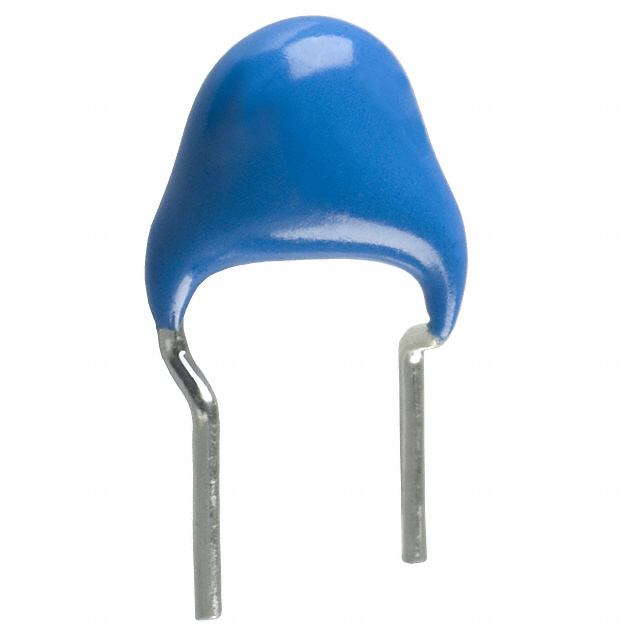

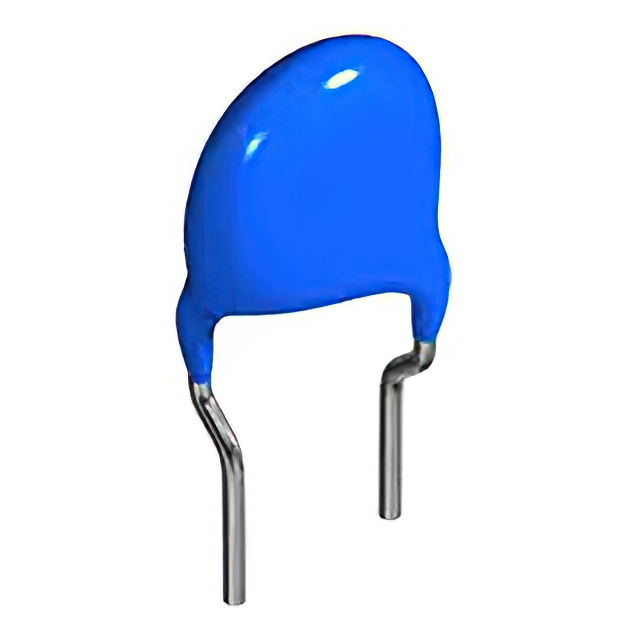

TDK Corporation CC45SL3FD180JYVNA	18 pF	SL	-25 °C	125 °C	High Voltage Low Dissipation Factor	Formed Leads - Kinked	3000 V	3 kV	Through Hole	5.5 mm	0.217 in	General Purpose	0.374 "	9.5 mm	5 %	Disc Radial	0.295 in	7.5 mm
TDK Corporation CC45SL3JD050DYGNA	5 pF	SL	-25 °C	125 °C	High Voltage Low Dissipation Factor	Formed Leads - Kinked	6000 V	6 kV	Through Hole	7.5 mm	0.295 in	General Purpose		0.453 in	0.5 pF	Disc Radial	0.295 in	7.5 mm	11.5 mm
TDK Corporation CC45SL3AD391JYVNA	390 pF	SL	-25 °C	125 °C	High Voltage Low Dissipation Factor	Formed Leads - Kinked	1000 V	1 kV	Through Hole	10.5 mm	0.413 in	General Purpose	0.571 "	14.5 mm	5 %	Disc Radial	0.197 "	5 mm
TDK Corporation CC45SL3DD121JYGNA	120 pF	SL	-25 °C	125 °C	High Voltage Low Dissipation Factor	Formed Leads - Kinked	2000 V	2 kV	Through Hole	8 mm	0.315 in	General Purpose	0.472 in		5 %	Disc Radial	0.197 "	5 mm		12 mm
TDK Corporation CC45SL3FD100JYNNA	10 pF	SL	-25 °C	125 °C	High Voltage Low Dissipation Factor	Formed Leads - Kinked	3000 V	3 kV	Through Hole	5.5 mm	0.217 in	General Purpose	0.374 "	9.5 mm	5 %	Disc Radial	0.295 in	7.5 mm
TDK Corporation CC45SL3AD470JYVNA	47 pF	SL	-25 °C	125 °C	High Voltage Low Dissipation Factor	Formed Leads - Kinked	1000 V	1 kV	Through Hole	5.5 mm	0.217 in	General Purpose	0.374 "	9.5 mm	5 %	Disc Radial	0.197 "	5 mm
TDK Corporation CC45SL3DD330JYVNA	33 pF	SL	-25 °C	125 °C	High Voltage Low Dissipation Factor	Formed Leads - Kinked	2000 V	2 kV	Through Hole	5.5 mm	0.217 in	General Purpose	0.374 "	9.5 mm	5 %	Disc Radial	0.197 "	5 mm
TDK Corporation CC45SL3AD390JYVNA	39 pF	SL	-25 °C	125 °C	High Voltage Low Dissipation Factor	Formed Leads - Kinked	1000 V	1 kV	Through Hole	5.5 mm	0.217 in	General Purpose	0.374 "	9.5 mm	5 %	Disc Radial	0.197 "	5 mm
TDK Corporation CC45SL3DD560JYGNA	56 pF	SL	-25 °C	125 °C	High Voltage Low Dissipation Factor	Formed Leads - Kinked	2000 V	2 kV	Through Hole	6 mm	0.236 in	General Purpose	0.394 in	10 mm	5 %	Disc Radial	0.197 "	5 mm
TDK Corporation CC45SL3FD181JYVNA	180 pF	SL	-25 °C	125 °C	High Voltage Low Dissipation Factor	Formed Leads - Kinked	3000 V	3 kV	Through Hole	11 mm	0.433 "	General Purpose			5 %	Disc Radial	0.295 in	7.5 mm			15 mm	0.591 "
