TBL009 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
TERMINAL BLOCK, SCREWLESS, 2.54,
| Part | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Mounting Type | Current | Voltage | Features | Number of Levels | Color | Mating Orientation | Positions Per Level | Wire Gauge [Max] | Wire Gauge [Min] | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

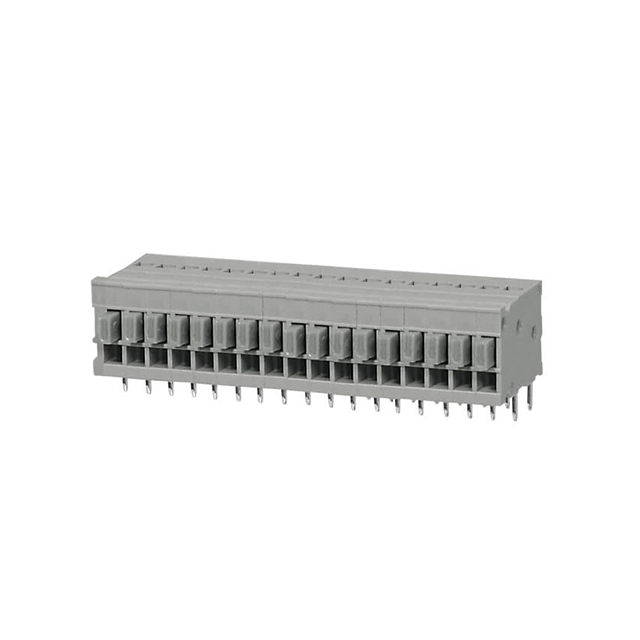

 Same Sky (Formerly CUI Devices) | Copper Alloy - Tin Plated | -40 C | 105 ░C | 0.1 " | 2.54 mm | Through Hole | 5 A | 150 V | Interlocking (Side) Push Button Actuated | 1 | Gray | Horizontal with Board | 17 | 26 AWG | 17.5 AWG | Screwless - Push Button Clamp |

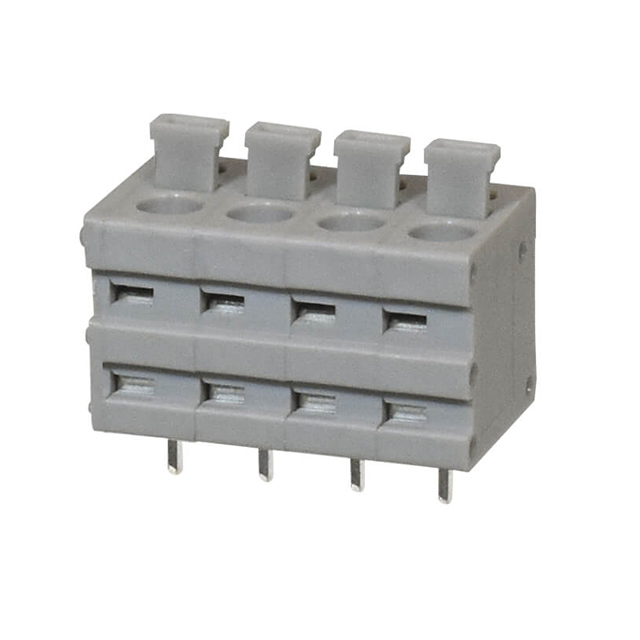

 Same Sky (Formerly CUI Devices) | Copper Alloy - Tin Plated | -40 C | 105 ░C | 0.197 in | 5 mm | Through Hole | 10 A | 300 VDC | Interlocking (Side) Push Button Actuated | 1 | Gray | Vertical with Board | 4 | 26 AWG | 16 AWG | Screwless - Push Button Clamp |
