CHS-08T Series

Catalog

DIP SW, 8CKT, SPST, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Length [x]	Length [x]	Electrical Life	Body Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Actuator Level	Circuit	Number of Positions	Termination Style	Current Rating (Amps)	Actuator Type	Voltage Rating	Mounting Type	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Pitch	Features
Nidec Components Corporation CHS-08TB1	11.71 mm	0.461 "	2000 Steps	Polyphenylene Sulfide (PPS)	Copper Alloy	85 °C	-40 C	Gold	Flush Recessed	SPST	8	Gull Wing	100 mA	Slide (Standard)	6 V	Surface Mount	0.098 in	2.5 mm	0.05 "	1.27 mm	Half
Nidec Components Corporation CHS-08TA1	11.71 mm	0.461 "	2000 Steps	Polyphenylene Sulfide (PPS)	Copper Alloy	85 °C	-40 C	Gold	Flush Recessed	SPST	8	J Lead	100 mA	Slide (Standard)	6 V	Surface Mount	0.098 in	2.5 mm	0.05 "	1.27 mm	Half

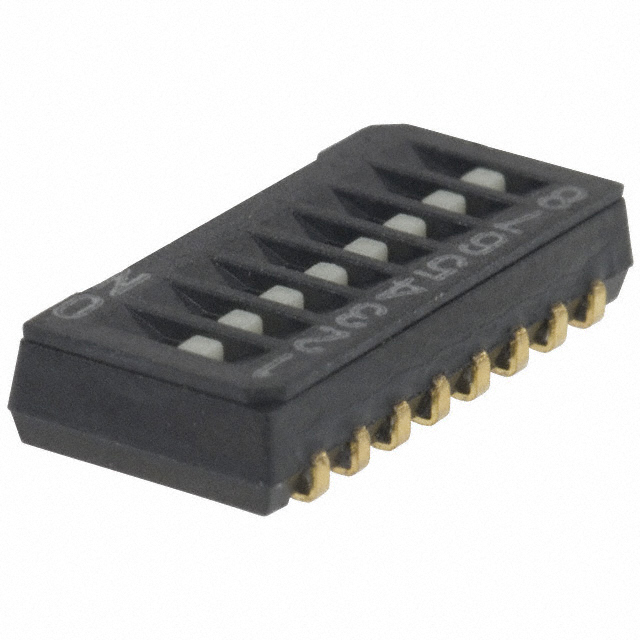

Nidec Components Corporation CHS-08TA	11.71 mm	0.461 "	2000 Steps	Polyphenylene Sulfide (PPS)	Copper Alloy	85 °C	-40 C	Gold	Flush Recessed	SPST	8	J Lead	100 mA	Slide (Standard)	6 V	Surface Mount	0.098 in	2.5 mm	0.05 "	1.27 mm	Half	Tape Seal
Nidec Components Corporation CHS-08TB	11.71 mm	0.461 "	2000 Steps	Polyphenylene Sulfide (PPS)	Copper Alloy	85 °C	-40 C	Gold	Flush Recessed	SPST	8	Gull Wing	100 mA	Slide (Standard)	6 V	Surface Mount	0.098 in	2.5 mm	0.05 "	1.27 mm	Half	Tape Seal
