A31ASQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 80A 24V
| Part | Coil Power | Coil Resistance | Contact Material | Must Operate Voltage | Must Release Voltage | Coil Voltage | Contact Form | Contact Rating (Current) | Operate Time | Termination Style | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Release Time | Coil Type | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

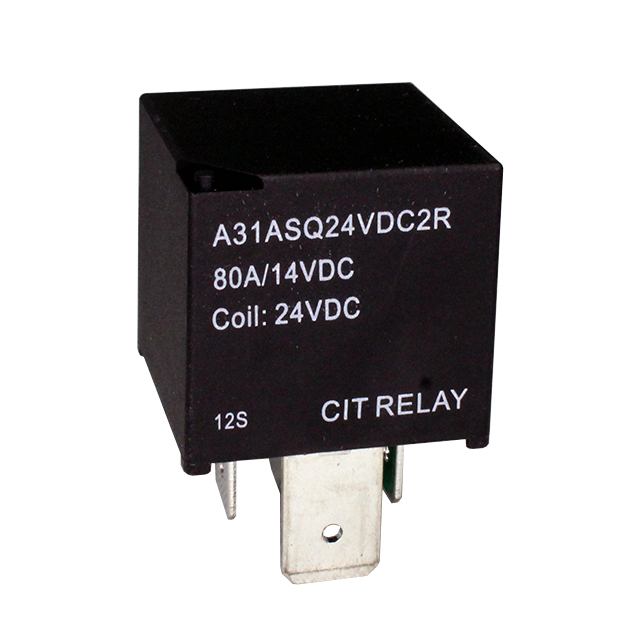

 CIT Relay and Switch | 1.8 W | 320 Ohms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 16.8 VDC | 2.4 VDC | 24 VDC | SPST-NO (1 Form A) | 80 A | 7 ms | Quick Connect - Multiple Sizes | Socketable | Resistor Sealed - Fully | 125 °C | -40 C | 0.075 A | 5 ms | Non Latching | 75 VDC |

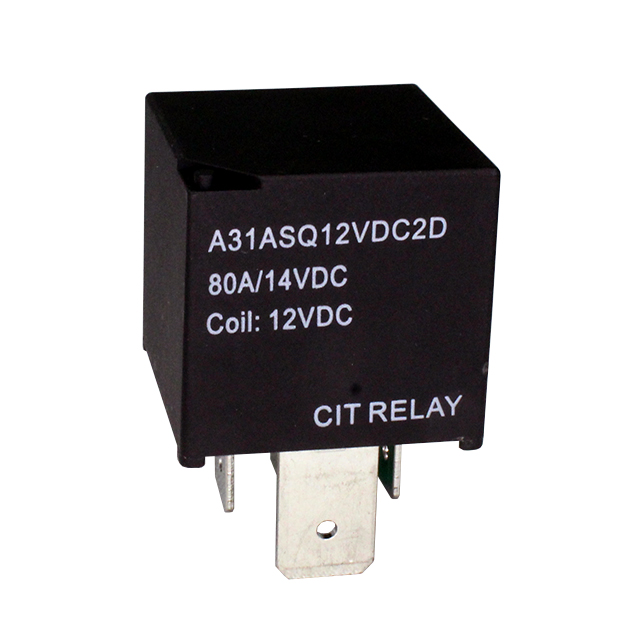

 CIT Relay and Switch | 1.8 W | 80 Ohms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 8.4 VDC | 1.2 VDC | 12 VDC | SPST-NO (1 Form A) | 80 A | 7 ms | Quick Connect - Multiple Sizes | Socketable | Diode Sealed - Fully | 125 °C | -40 C | 0.15 A | 5 ms | Non Latching | 75 VDC |
