16982-7P Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

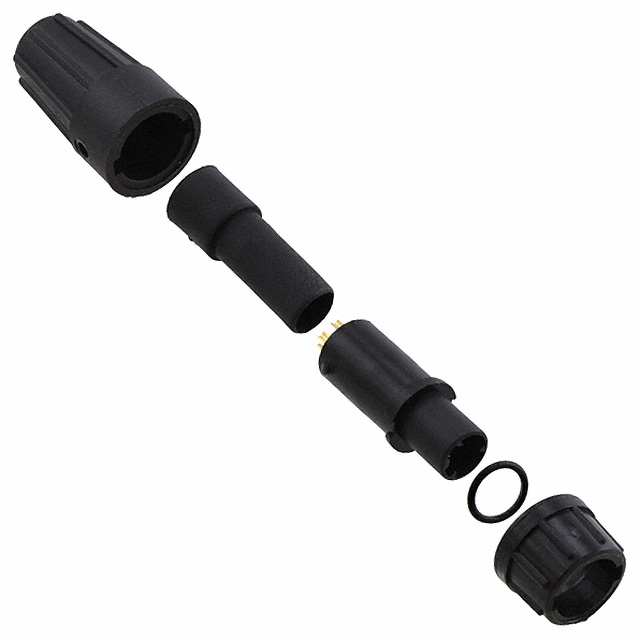

CIRCULAR CONNECTOR, MICRO-CON-X SERIES, CABLE MOUNT PLUG, 7 CONTACTS, SOLDER PIN, BAYONET
| Part | Backshell Material, Plating | Applications | Contact Material | Features | Shielding | Material Flammability Rating | Voltage Rating | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Primary Material | Orientation | Fastening Type | Contact Finish - Mating | Mounting Type | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Color | Ingress Protection | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Thermoplastic | Data Industrial Instrumentation Medical | Copper Alloy | Backshell | Unshielded | UL94 HB | 600 VAC | 3.5 A | 85 °C | -40 C | 7 | Plastic | B | Bayonet Lock | Gold | Free Hanging (In-Line) | 5.59 mm | 5.84 mm | 0.23 in | 0.22 in | Black | IP67 - Dust Tight Waterproof | Plug Male Pins |
