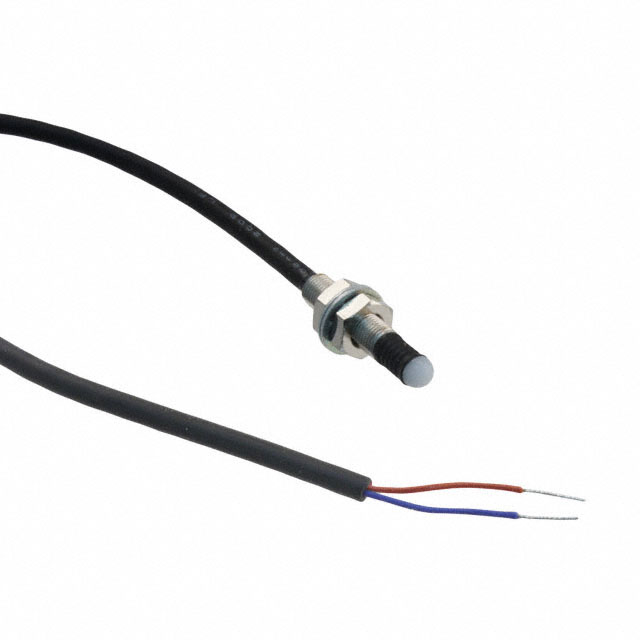

D5B Series

Catalog

SWITCH SNP ACT SPST-NC 0.03A 30V

Part	Features	Mounting Type	Termination Style	Operating Force	Switch Function	Circuit	Ingress Protection	Current Rating (Amps)	Voltage Rating - DC	Pretravel	Pretravel	Mechanical Life	Electrical Life	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]
Omron Automation and Safety D5B-8011	Cable Length 1m	Panel Mount	Cable Leads	75 gf	On-Mom	SPST-NC	IP67 - Dust Tight Waterproof	30 mA	30 V	0.6 mm	0.024 in	10000000 Cycles	5000000 Cycles	Domed	70 °C	-10 °C

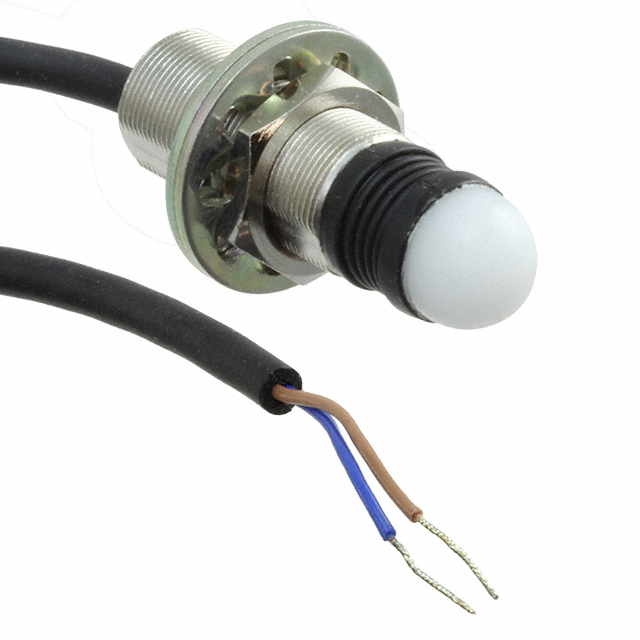

Omron Automation and Safety D5B-1013	Cable Length 3m	Panel Mount	Cable Leads	100 gf	On-Mom	SPST-NC	IP67 - Dust Tight Waterproof	30 mA	30 V	0.7 mm	0.028 "	10000000 Cycles	5000000 Cycles	Domed	70 °C	-10 °C
Omron Automation and Safety D5B-8515	Cable Length 5m	Panel Mount	Cable Leads	5 gf	On-Mom	SPST-NC	IP67 - Dust Tight Waterproof	30 mA	30 V	11 mm	0.433 in	10000000 Cycles	5000000 Cycles	Spring Wire	70 °C	-10 °C
