Power MOSFET, N Channel, 150V, 27 A, 31mΩ
Key Features
• Low RDS(on)
• Fast Switching

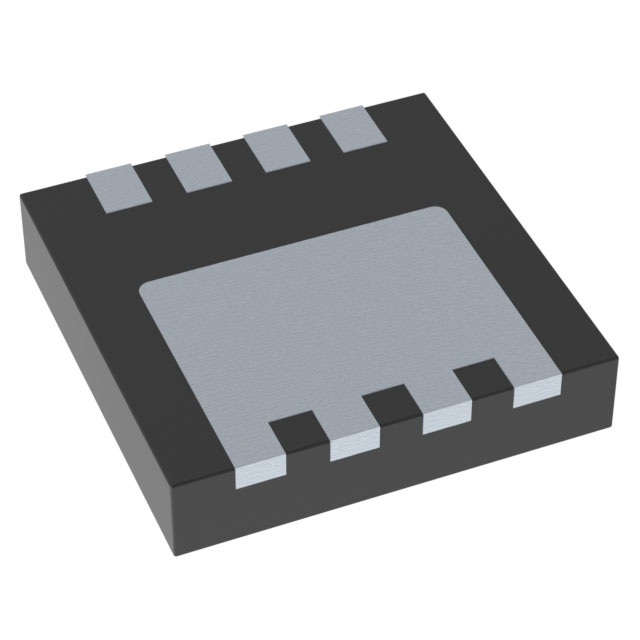

• Industry standard compact 3x3mm package
• These Devices are Pb−Free and are RoHS Compliant
Description
AI
Power MOSFET 150 V, 27 A, 31 mΩ
Beta
⌘K
Power MOSFET, N Channel, 150V, 27 A, 31mΩ
Power MOSFET, N Channel, 150V, 27 A, 31mΩ
| Part | Input Capacitance (Ciss) (Max) @ Vds [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Vgs (Max) | Vgs(th) (Max) @ Id | Package / Case | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Power Dissipation (Max) | Drain to Source Voltage (Vdss) | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Qg) (Max) @ Vgs [Max] | Mounting Type | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 905 pF | -55 °C | 175 ░C | 20 V | 4.5 V | 8-PowerWDFN | 8-PQFN (3.3x3.3) | 6.2 A 27 A | 31 mOhm | 1.2 W 53.6 W | 150 V | N-Channel | 8 V 10 V | 12 nC | Surface Mount | MOSFET (Metal Oxide) |
