TL3AR Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

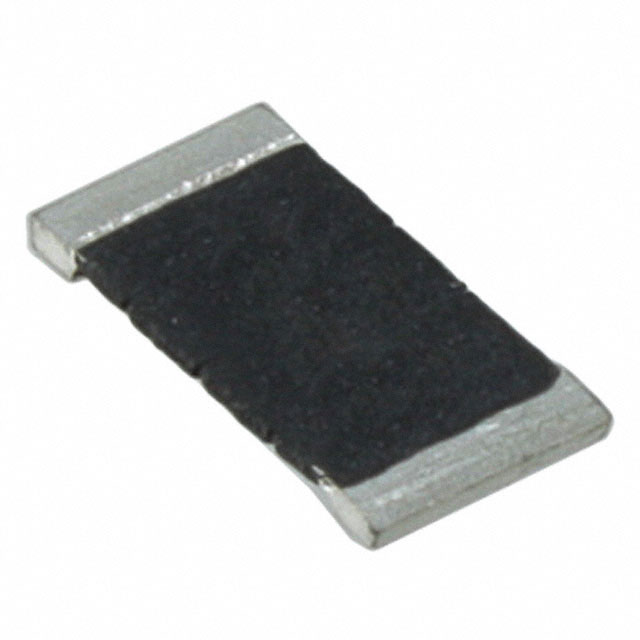

RES, 0R047, 1W, 2512, METAL FOIL

Part	Package / Case	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Package / Case	Resistance	Tolerance	Power (Watts)	Number of Terminations [custom]
TE Connectivity AMP Connectors TL3AR047FTDG	2512 2512 (6432 Metric)	75 ppm/°C	-65 ░C	170 °C	Current Sense	0.6 mm	0.024 in	2512	6332 Metric	47 mOhms	1 %	1 W	2
TE Connectivity AMP Connectors TL3AR022FTDG	2512 (6432 Metric)	75 ppm/°C	-65 ░C	170 °C	Current Sense	0.6 mm	0.024 in	2512		22 mOhms	1 %	1 W	2
TE Connectivity AMP Connectors TL3AR003FTDG	2512 (6432 Metric)	75 ppm/°C	-65 ░C	170 °C	Current Sense	0.6 mm	0.024 in	2512		3 mOhms	1 %	1 W	2
TE Connectivity AMP Connectors TL3AR10FTDG	2512 (6432 Metric)	75 ppm/°C	-65 ░C	170 °C	Current Sense	0.6 mm	0.024 in	2512		0.1 Ohms	1 %	1 W	2
TE Connectivity AMP Connectors TL3AR051F	2512 2512 (6432 Metric)	75 ppm/°C	-65 ░C	170 °C	Current Sense	0.6 mm	0.024 in	2512	6332 Metric	51 mOhms	1 %	1 W	2
TE Connectivity AMP Connectors TL3AR015FTDG	2512 (6432 Metric)	75 ppm/°C	-65 ░C	170 °C	Current Sense	0.6 mm	0.024 in	2512		15 mOhms	1 %	1 W	2
TE Connectivity AMP Connectors TL3AR02FTDG	2512 (6432 Metric)	75 ppm/°C	-65 ░C	170 °C	Current Sense	0.6 mm	0.024 in	2512		0.02 Ohms	1 %	1 W	2
TE Connectivity AMP Connectors TL3AR056FTDG	2512 (6432 Metric)	75 ppm/°C	-65 ░C	170 °C	Current Sense	0.6 mm	0.024 in	2512		56 mOhms	1 %	1 W	2
TE Connectivity AMP Connectors TL3AR047F	2512 2512 (6432 Metric)	75 ppm/°C	-65 ░C	170 °C	Current Sense	0.6 mm	0.024 in	2512	6332 Metric	47 mOhms	1 %	1 W	2
TE Connectivity AMP Connectors TL3AR068FTDG	2512 2512 (6432 Metric)	75 ppm/°C	-65 ░C	170 °C	Current Sense	0.6 mm	0.024 in	2512	6332 Metric	0.068 Ohms	1 %	1 W	2
