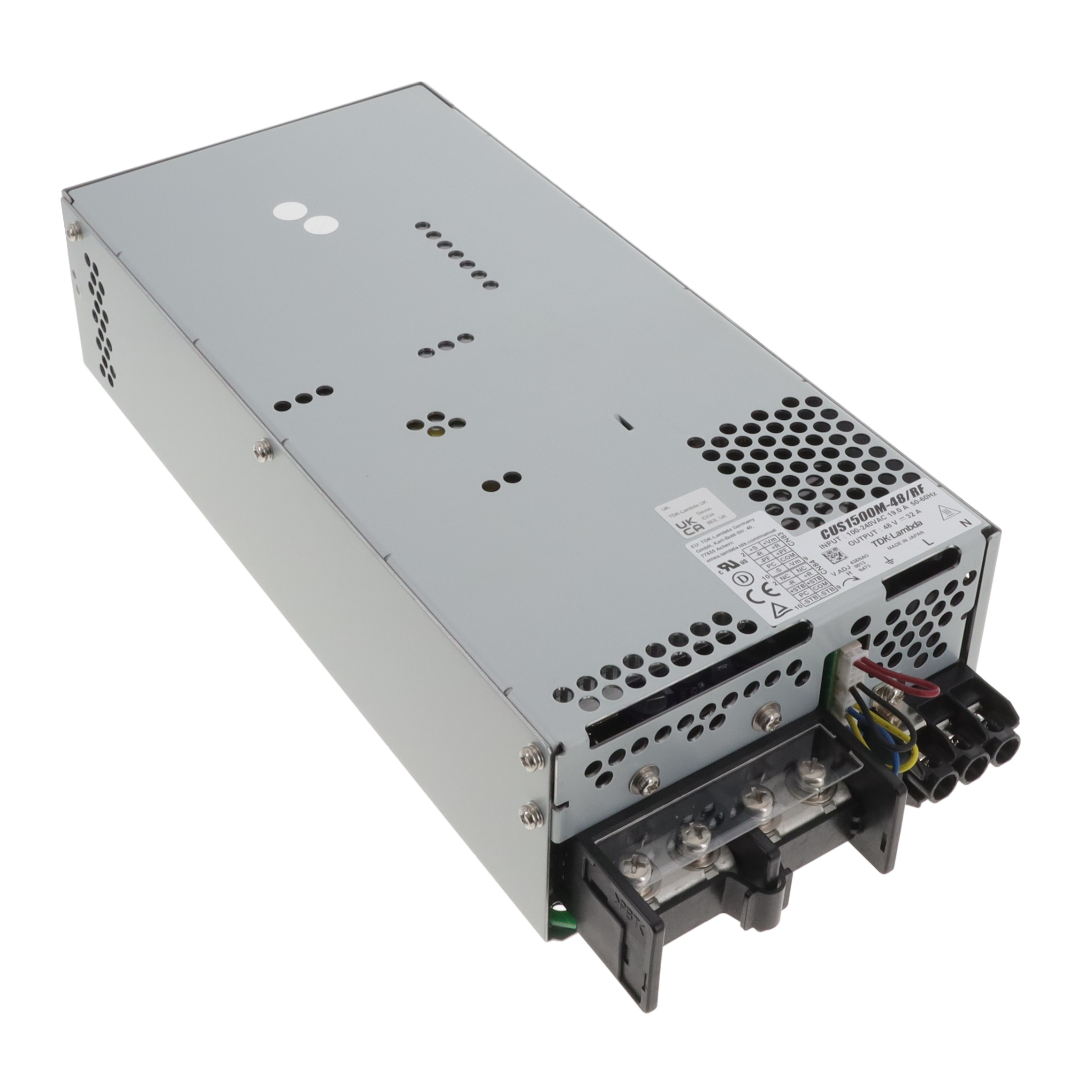

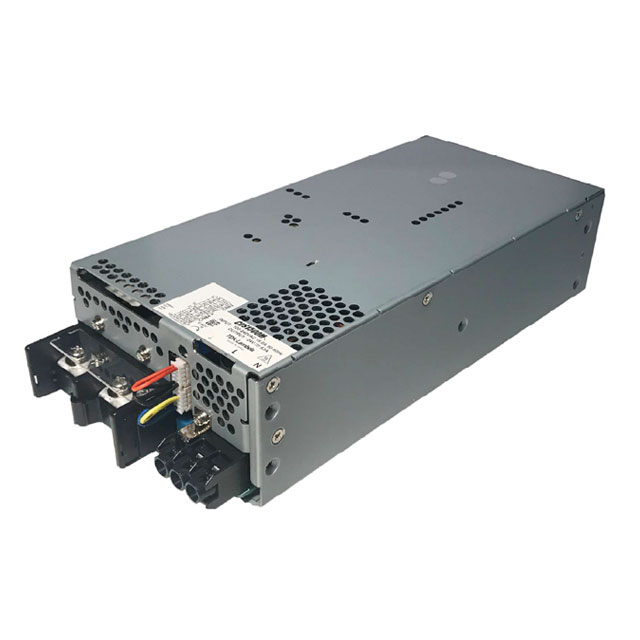

CUS1500 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.5 KW, 12 V, 125 A
| Part | Mounting Type | Voltage - Isolation | Applications | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Current - Output 1 | Features | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Power (Watts) | Approval Agency | Number of Outputs | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Chassis Mount | 4000 V | ITE (Commercial) Medical | Enclosed | 2.48 " | 5 in | 10.28 in | 63 mm | 5 in | 261 mm | 125 A | Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input | 85 VAC 120 VDC | 265 VAC 340 VDC | 85 % | 70 °C | -20 °C | 12 V | 1500 W | CE | 1 | |
TDK Corporation | Chassis Mount | 4000 V | ITE (Commercial) Medical | Enclosed | 2.48 " | 5 in | 10.28 in | 63 mm | 5 in | 261 mm | 100 A | Adjustable Output Remote On/Off Remote Sense Standby Output | 85 VAC 120 VDC | 265 VAC 340 VDC | 85 % | 60 °C | -20 °C | 15 V | 1500 W | CE | 1 | |
TDK Corporation | Chassis Mount | 4000 V | ITE (Commercial) Medical | Enclosed | 2.48 " | 5 in | 10.28 in | 63 mm | 5 in | 261 mm | 125 A | Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input | 85 VAC 120 VDC | 265 VAC 340 VDC | 85 % | 60 °C | -20 °C | 12 V | 1500 W | CE | 1 | |
 TDK Corporation | Chassis Mount | 4000 V | ITE (Commercial) Medical | Enclosed | 2.48 " | 5 in | 10.28 in | 63 mm | 5 in | 261 mm | 42 A | Adjustable Output Remote On/Off Remote Sense Standby Output | 85 VAC 120 VDC | 265 VAC 340 VDC | 88 % | 60 °C | -20 °C | 1512 W | CE | 1 | 36 V | |
TDK Corporation | Chassis Mount | 4000 V | ITE (Commercial) Medical | Enclosed | 2.48 " | 5 in | 10.28 in | 63 mm | 5 in | 261 mm | 32 A | Adjustable Output Remote On/Off Remote Sense Standby Output | 85 VAC 120 VDC | 265 VAC 340 VDC | 88 % | 60 °C | -20 °C | 48 V | 1.536 kW | CE | 1 | |
 TDK Corporation | Chassis Mount | 4000 V | ITE (Commercial) Medical | Enclosed | 2.48 " | 5 in | 10.28 in | 63 mm | 5 in | 261 mm | 32 A | Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input | 85 VAC 120 VDC | 265 VAC 340 VDC | 88 % | 70 °C | -20 °C | 48 V | 1.536 kW | CE | 1 |
