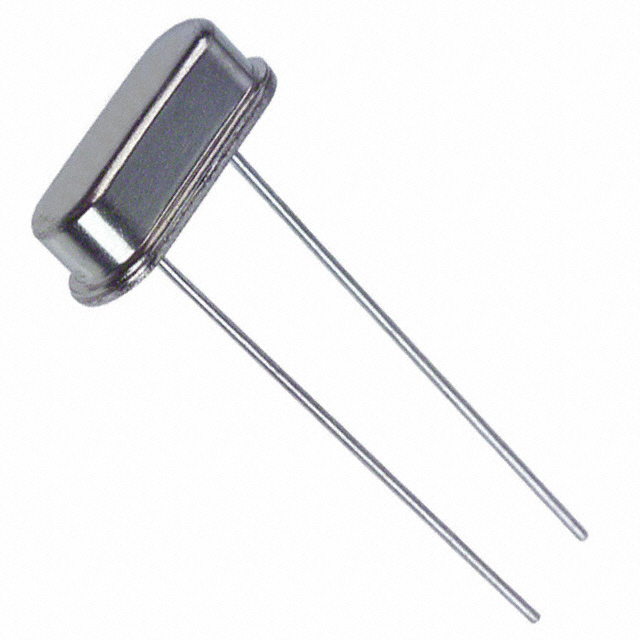

HC-49/US Series

Catalog

CRYSTAL 6.0000MHZ 32PF TH

Part	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Mounting Type	Frequency Stability	Frequency Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Load Capacitance	Package / Case	Operating Mode
Citizen Finedevice Co Ltd HC-49/U-S6000000ABOB	6 MHz	0.138 "	3.5 mm	11.5 mm	0.183 "	4.66 mm	0.453 "	MHz Crystal	Through Hole	50 ppm	30 ppm	-10 °C	60 °C	100 Ohms	32 pF	HC-49/US	Fundamental
Citizen Finedevice Co Ltd HC-49/U-S4915200ABJB	4.9152 MHz	0.138 "	3.5 mm	11.5 mm	0.183 "	4.66 mm	0.453 "	MHz Crystal	Through Hole	50 ppm	30 ppm	-10 °C	60 °C	150 Ohms	18 pF	HC-49/US	Fundamental
Citizen Finedevice Co Ltd HC-49/U-S11289600ABJB	11.2896 MHz	0.138 "	3.5 mm	11.5 mm	0.183 "	4.66 mm	0.453 "	MHz Crystal	Through Hole	50 ppm	30 ppm	-10 °C	60 °C	80 Ohm	18 pF	HC-49/US	Fundamental
Citizen Finedevice Co Ltd HC-49/U-S29491200ABJB	29.4912 MHz	0.138 "	3.5 mm	11.5 mm	0.183 "	4.66 mm	0.453 "	MHz Crystal	Through Hole	50 ppm	30 ppm	-10 °C	60 °C	50 Ohms	18 pF	HC-49/US	Fundamental
Citizen Finedevice Co Ltd HC-49/U-S33868800ABJB	33.8688 MHz	0.138 "	3.5 mm	11.5 mm	0.183 "	4.66 mm	0.453 "	MHz Crystal	Through Hole	50 ppm	30 ppm	-10 °C	60 °C	140 Ohms	18 pF	HC-49/US	3rd Overtone
Citizen Finedevice Co Ltd HC-49/U-S18432000ABJB	18.432 MHz	0.138 "	3.5 mm	11.5 mm	0.183 "	4.66 mm	0.453 "	MHz Crystal	Through Hole	50 ppm	30 ppm	-10 °C	60 °C	50 Ohms	18 pF	HC-49/US	Fundamental
