DW-50-19 Series

Catalog

CONN HDR 50POS 0.1 STACK T/H

Part	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Number of Positions	Mounting Type	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Color	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail [x]	Length - Tail [x]	Row Spacing [x]	Row Spacing
Samtec Inc. DW-50-19-G-S-1020	Solder	0.2 in	5.08 mm	1	50	Through Hole	25.908 mm	1.02 in	0.25 Ám	10 Áin	Gold	Black	2.54 mm	0.1 in	33.782 mm	1.33 in	0.11 in	2.794 mm
Samtec Inc. DW-50-19-S-D-820	Solder	0.4 in	10.16 mm	2	100	Through Hole	20.828 mm	0.82 in	0.76 µm	30 µin	Gold	Black	2.54 mm	0.1 in	33.782 mm	1.33 in	0.11 in	2.794 mm	0.1 in	2.54 mm

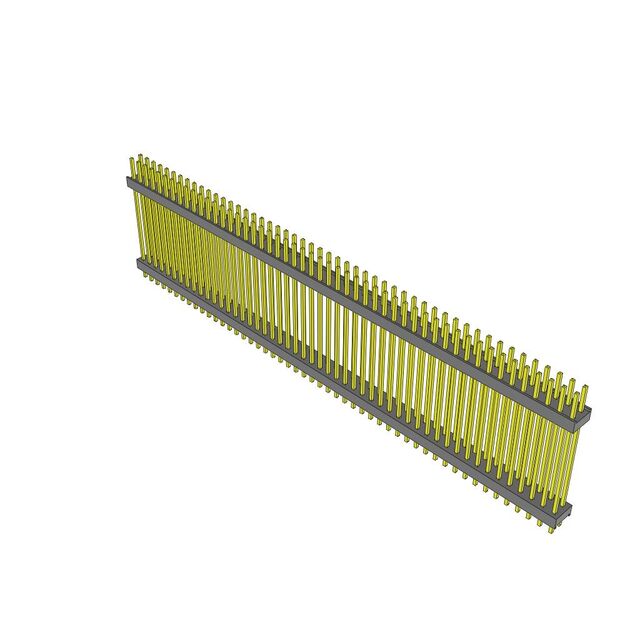

Samtec Inc. DW-50-19-G-D-1020	Solder	0.2 in	5.08 mm	2	100	Through Hole	25.908 mm	1.02 in	0.25 Ám	10 Áin	Gold	Black	2.54 mm	0.1 in	33.782 mm	1.33 in	0.11 in	2.794 mm	0.1 in	2.54 mm
Samtec Inc. DW-50-19-G-D-1010	Solder	0.21 in	5.334 mm	2	100	Through Hole	25.654 mm	1.01 in	0.25 Ám	10 Áin	Gold	Black	2.54 mm	0.1 in	33.782 mm	1.33 in	0.11 in	2.794 mm	0.1 in	2.54 mm
Samtec Inc. DW-50-19-T-D-1000	Solder	0.22 in	5.588 mm	2	100	Through Hole	25.4 mm	1 in			Tin	Black	2.54 mm	0.1 in	33.782 mm	1.33 in	0.11 in	2.794 mm	0.1 in	2.54 mm
Samtec Inc. DW-50-19-G-D-1000	Solder	0.22 in	5.588 mm	2	100	Through Hole	25.4 mm	1 in	0.25 Ám	10 Áin	Gold	Black	2.54 mm	0.1 in	33.782 mm	1.33 in	0.11 in	2.794 mm	0.1 in	2.54 mm
