FI-J20 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN COVER FOR 20POS PLUG
| Part | For Use With/Related Products | Accessory Type | Number of Positions | Contact Finish Thickness - Post | Contact Material | Insulation Material | Applications | Features | Contact Type | Termination | Number of Rows | Contact Finish - Mating | Number of Positions Loaded | Insulation Color | Fastening Type | Style | Insulation Height | Insulation Height | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Mated Stacking Heights | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Current Rating (Amps) | Connector Type | Cable Termination | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Color | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

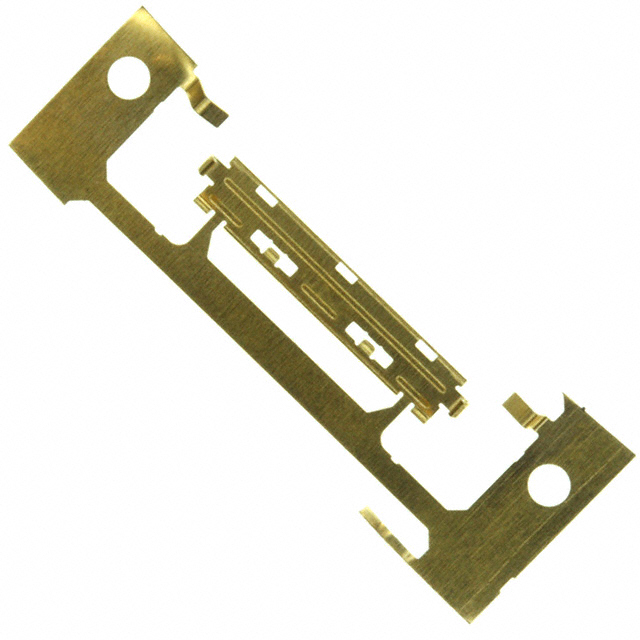

 JAE Electronics | FI-J Series | Cap (Cover) | 20 | |||||||||||||||||||||||||||||||||||

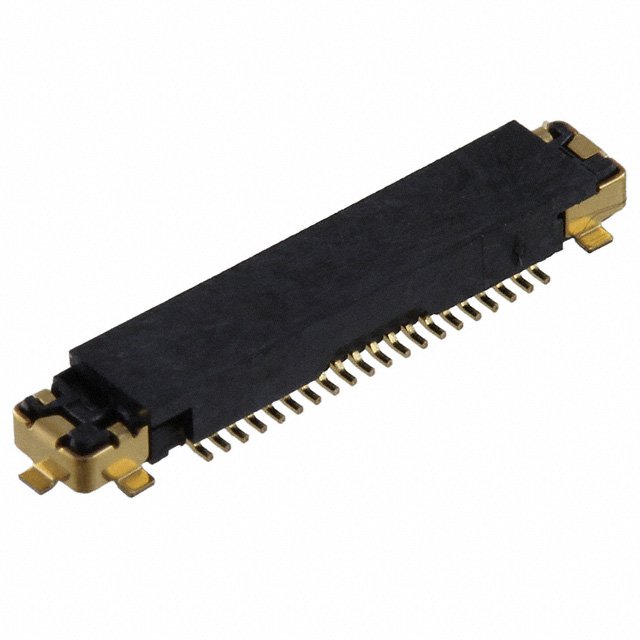

 JAE Electronics | 20 | Flash | Copper Alloy | Plastic | General Purpose | Pick and Place Solder Retention | Non-Gendered | Solder | 1 | Gold | All | Black | Friction Lock | Board to Cable/Wire | 0.046 in | 1.16 mm | Gold | 0.4 mm | 0.016 in | UL94 V-0 | 85 °C | -40 C | Surface Mount | 1.58 mm | 3.9 µin | 0.099 µm | 50 V | 0.3 A | Receptacle | |||||||||
 JAE Electronics | 20 | Non-Gender Specific | 1 | Free Hanging (In-Line) | Plug | Solder | -1 AWG | -2 AWG | Gold | Black | 0.4 mm | 0.016 in | ||||||||||||||||||||||||||

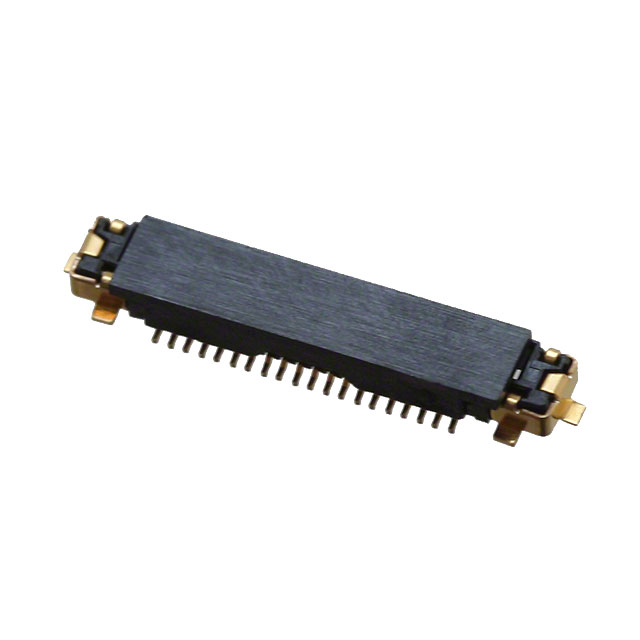

 JAE Electronics | 20 | Flash | Copper Alloy | Plastic | General Purpose | Pick and Place Solder Retention | Non-Gendered | Solder | 1 | Gold | All | Black | Friction Lock | Board to Cable/Wire | 0.046 in | 1.16 mm | Gold | 0.4 mm | 0.016 in | UL94 V-0 | 85 °C | -40 C | Surface Mount | 1.58 mm | 3.9 µin | 0.099 µm | 50 V | 0.3 A | Receptacle |
