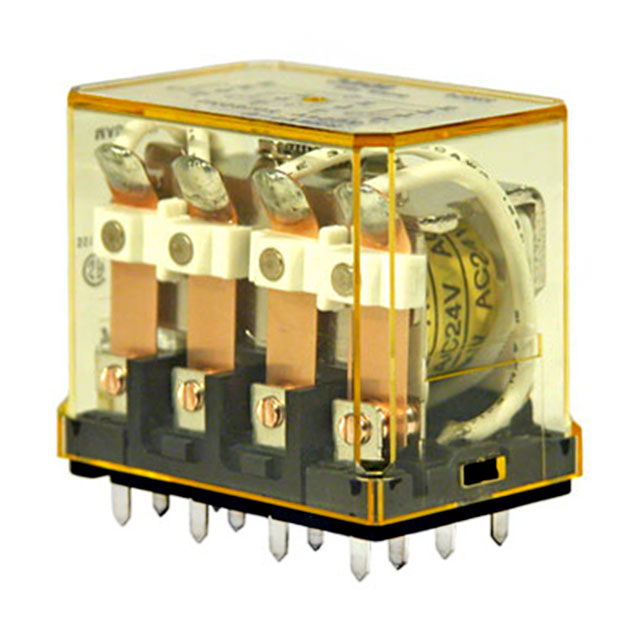

RH4V2-U Series
Manufacturer: IDEC
Beta
⌘K
RELAY PCB 4PDT 10A 24VDC ROHS COMPLIANT: YES
| Part | Coil Resistance | Contact Form | Features | Coil Current | Relay Type | Termination Style | Approval Agency | Must Release Voltage | Operate Time | Coil Type | Must Operate Voltage | Mounting Type | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Release Time | Coil Voltage | Load - Max Switching | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 388 Ohms | 4PDT (4 Form C) | Diode | 62 mA | General Purpose | PC Pin | CE CSA cURus TUV | 2.4 VDC | 25 ms | Non Latching | 19.2 VDC | Through Hole | 30 VDC 240 VAC | -25 °C | 70 °C | Silver Cadmium Oxide (AgCdO) | 25 ms | 24 VDC | 300 W 2400 VA | 10 A |
IDEC | 7.36 kOhms | 4PDT (4 Form C) | 9.1 mA | General Purpose | PC Pin | CE CSA cURus TUV | 66 VAC | 25 ms | Non Latching | 176 VAC | Through Hole | 30 VDC 240 VAC | -25 °C | 70 °C | Silver Cadmium Oxide (AgCdO) | 25 ms | 220 VAC/DC | 300 W 2400 VA | 10 A | |
IDEC | 96 Ohms | 4PDT (4 Form C) | Lighted Indicator | 125 mA | General Purpose | PC Pin | CE CSA cURus TUV | 1.2 VDC | 25 ms | Non Latching | 9.6 VDC | Through Hole | 30 VDC 240 VAC | -25 °C | 70 °C | Silver Cadmium Oxide (AgCdO) | 25 ms | 12 VDC | 300 W 2400 VA | 10 A |
IDEC | 9.12 kOhms | 4PDT (4 Form C) | 8.3 mA | General Purpose | PC Pin | CE CSA cURus TUV | 72 VAC/DC | 25 ms | Non Latching | 192 VAC | Through Hole | 30 VDC 240 VAC | -25 °C | 70 °C | Silver Cadmium Oxide (AgCdO) | 25 ms | 240 VAC/DC | 300 W 2400 VA | 10 A | |
IDEC | 24 Ohms | 4PDT (4 Form C) | 250 mA | General Purpose | PC Pin | CE CSA cURus TUV | 0.6 VDC | 25 ms | Non Latching | 4.8 VDC | Through Hole | 30 VDC 240 VAC | -25 °C | 70 °C | Silver Cadmium Oxide (AgCdO) | 25 ms | 300 W 2400 VA | 10 A | ||
IDEC | 4PDT (4 Form C) | General Purpose | PC Pin | CE CSA cURus TUV | 69 VAC | 25 ms | Non Latching | 184 VAC | Through Hole | 30 VDC 240 VAC | -25 °C | 70 °C | Silver Cadmium Oxide (AgCdO) | 25 ms | 230 VAC | 300 W 2400 VA | 10 A | |||
IDEC | 388 Ohms | 4PDT (4 Form C) | Diode Lighted Indicator | 62 mA | General Purpose | PC Pin | CE CSA cURus TUV | 2.4 VDC | 25 ms | Non Latching | 19.2 VDC | Through Hole | 30 VDC 240 VAC | -25 °C | 70 °C | Silver Cadmium Oxide (AgCdO) | 25 ms | 24 VDC | 300 W 2400 VA | 10 A |
IDEC | 96 Ohms | 4PDT (4 Form C) | Diode | 125 mA | General Purpose | PC Pin | CE CSA cURus TUV | 1.2 VDC | 25 ms | Non Latching | 9.6 VDC | Through Hole | 30 VDC 240 VAC | -25 °C | 70 °C | Silver Cadmium Oxide (AgCdO) | 25 ms | 12 VDC | 300 W 2400 VA | 10 A |
IDEC | 2.22 kOhms | 4PDT (4 Form C) | Lighted Indicator Test Button | 16.5 mA | General Purpose | PC Pin | CE CSA cURus TUV | 36 VAC | 25 ms | Non Latching | 96 VAC | Through Hole | 30 VDC 240 VAC | -25 °C | 70 °C | Silver Cadmium Oxide (AgCdO) | 25 ms | 120 VAC | 300 W 2400 VA | 10 A |
IDEC | 32.267 kOhms | 4PDT (4 Form C) | 6.8 mA | General Purpose | PC Pin | CE CSA cURus TUV | 22 VDC | 25 ms | Non Latching | 176 VDC | Through Hole | 30 VDC 240 VAC | -25 °C | 70 °C | Silver Cadmium Oxide (AgCdO) | 25 ms | 220 VDC | 300 W 2400 VA | 10 A |
