SB175 Series

Catalog

HEAVY DUTY POWER CONNECTORS HDWBAGFORCAT902

Part	For Use With/Related Products	Accessory Type	Contact Material	Type	Contact Finish	Contact Termination	Contact Type	Wire Gauge	Fastening Type	Material - Insulation	Voltage Rating	Note	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Color	Number of Rows	Connector Type	Stacking Direction	Mounting Type	Number of Positions	Connector Style	Termination

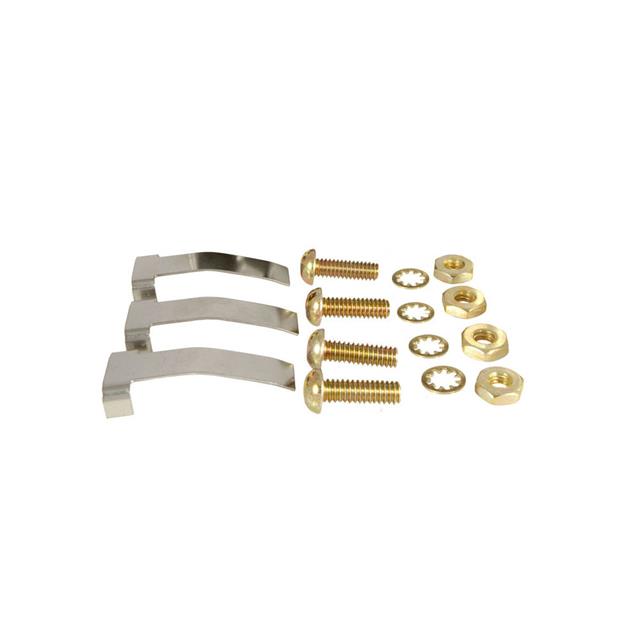

Anderson Power Products, Inc. 110G34	SB® 175 Series	Hardware Bag

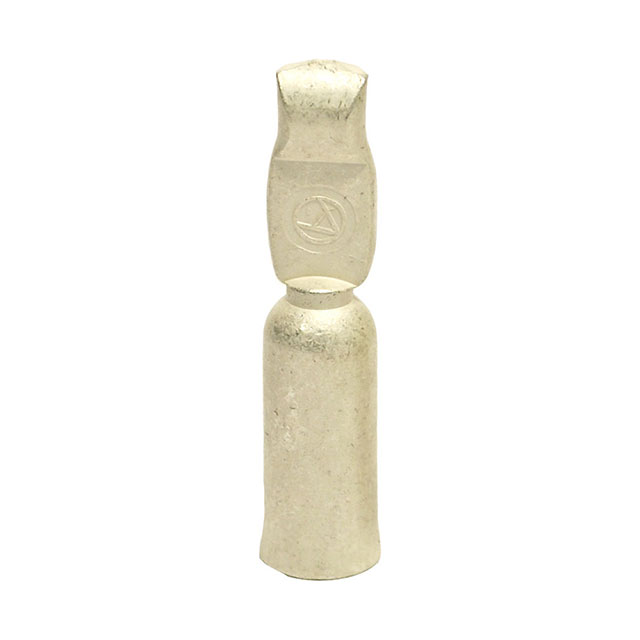

Anderson Power Products, Inc. 1348			Copper Alloy	Machined	Silver	Crimp	Non-Gendered	6 AWG
Anderson Power Products, Inc. 949-BK						Crimp	Non-Gendered		Spring Retention	Polycarbonate (PC)	600 V	Contacts Not Included	-20 ░C	105 ░C	280 A	Red	1	Non-Gendered	Side to Side	Free Hanging (In-Line)	2
Anderson Power Products, Inc. 6325G1			Copper Alloy		Silver			44 AWG	Spring Retention	Polycarbonate (PC)	600 V		-20 ░C	105 ░C	175 A	Gray	1	Non-Gendered		Free Hanging (In-Line)	2	2 Poles	Crimp
Anderson Power Products, Inc. P940						Crimp	Non-Gendered									Gray	1	Non-Gendered		Free Hanging (In-Line)	2

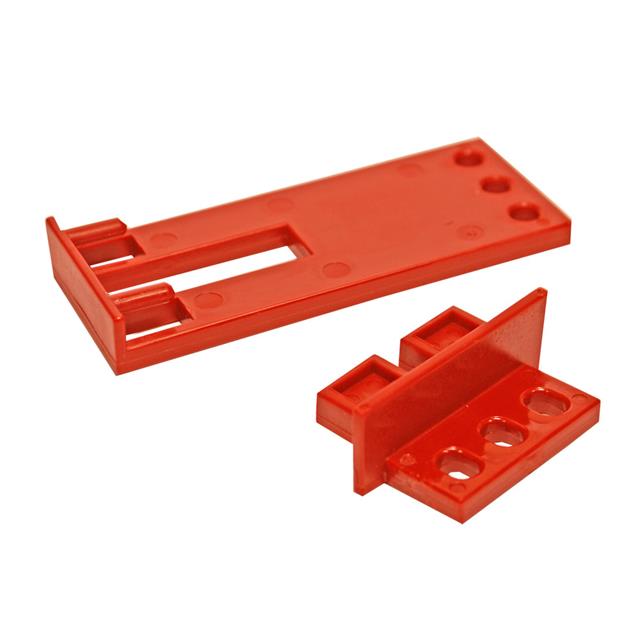

Anderson Power Products, Inc. SB175-LOCKOUT	SB® 175 Series	Lockout Device

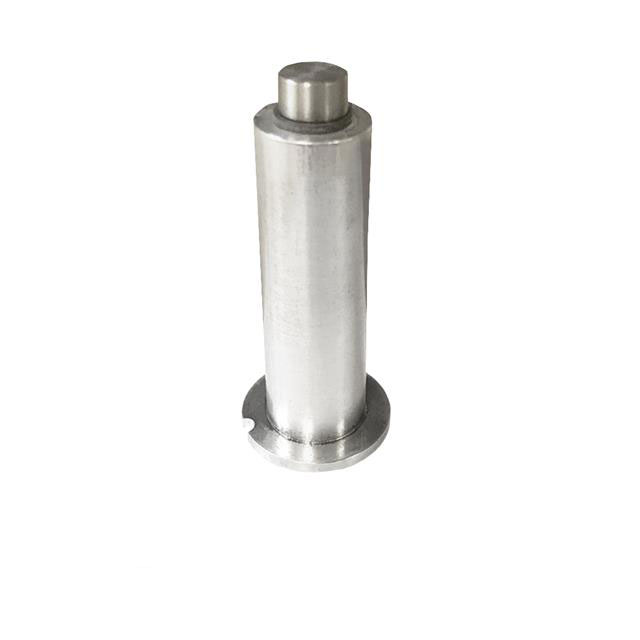

Anderson Power Products, Inc. 1389G3	1387G1	Locator

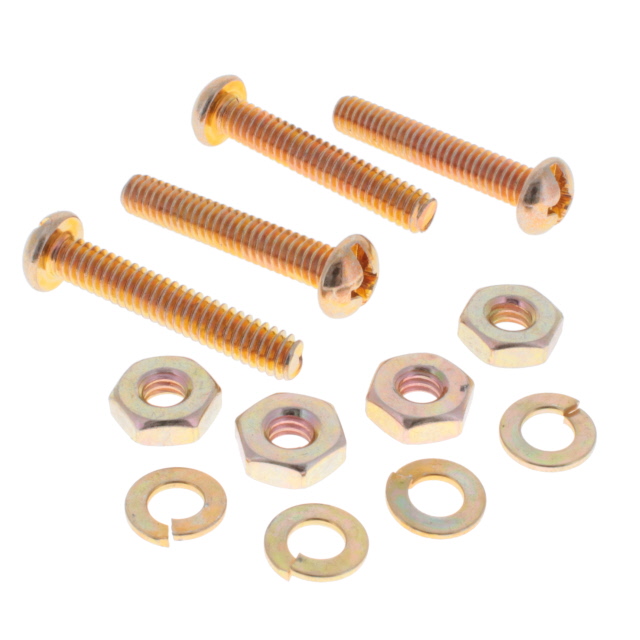

Anderson Power Products, Inc. 105G8	SB® 175 Series	Hardware Bag

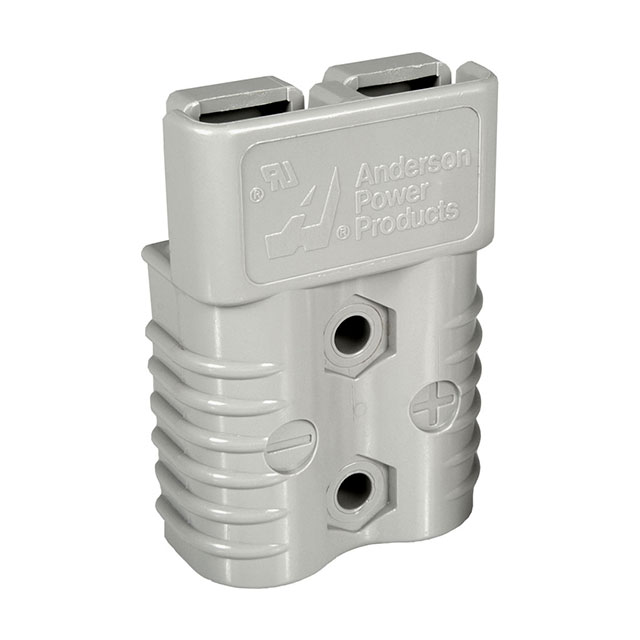

Anderson Power Products, Inc. 940-BK						Crimp	Non-Gendered		Spring Retention	Polycarbonate (PC)	600 V	Contacts Not Included	-20 ░C	105 ░C	280 A	Gray	1	Non-Gendered	Side to Side	Free Hanging (In-Line)	2
Anderson Power Products, Inc. 105G3	SB® 175 Series	Cable Clamp
