SS075R Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SNAP ACT SPDT 0.4VA 20V
| Part | Termination Style | Operating Position [x] | Operating Position [x] | Circuit | Electrical Life | Pretravel | Pretravel | Mounting Type | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Mechanical Life | Actuator Type | Switch Function | Release Force | Operating Force | Voltage Rating - AC | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

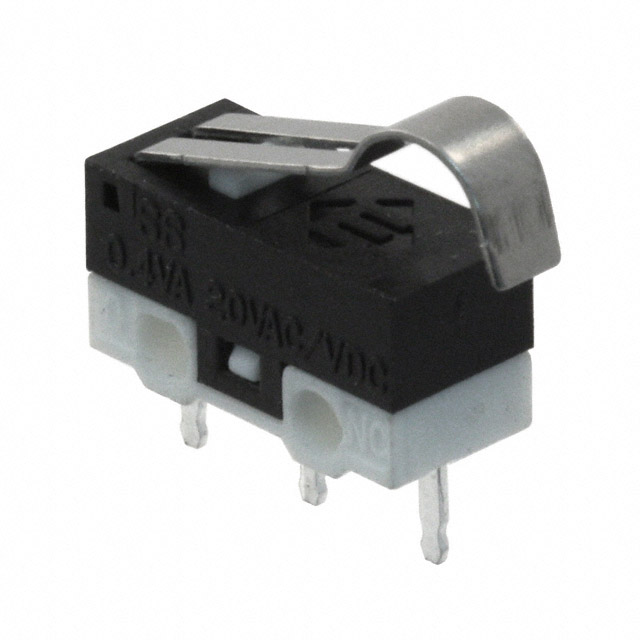

 E-Switch | PC Pin | 0.38 in | 9.7 mm | SPDT | 100000 Cycles | 0.053 " | 1.35 mm | Through Hole | 20 V | -25 °C | 75 ░C | 0.4 VA | 1000000 Cycles | Lever Simulated Roller | On-Mom | 15 gf | 50 gf | 20 V | ||
 E-Switch | PC Pin | SPDT | 100000 Cycles | 0.063 in | 1.6 mm | Right Angle Through Hole | 20 V | -25 °C | 75 ░C | 0.4 VA | 1000000 Cycles | Lever Straight | On-On | 5 gf | 20 gf | 20 V | 8.8 mm | 0.346 in |
