750069 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

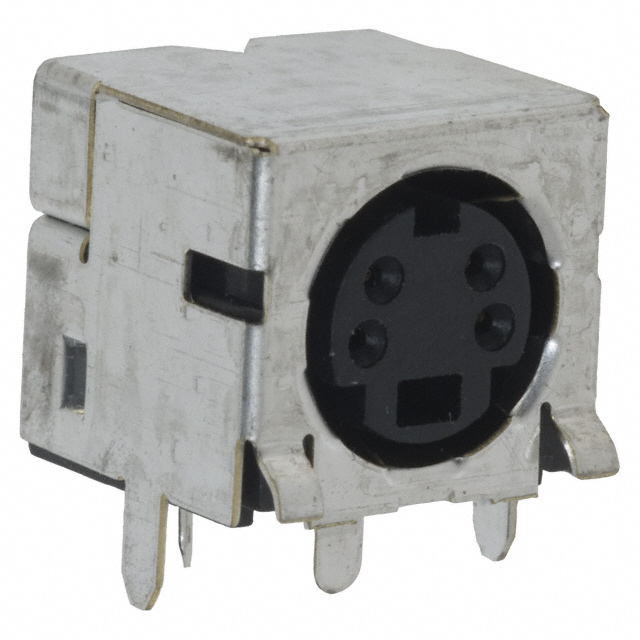

CONN RCPT FMALE MINI DIN 4P SLDR
| Part | Material Flammability Rating | Voltage Rating | Mounting Type | Contact Material | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Primary Material | Applications | Number of Positions | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Shell Material | Shielding | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | 30 VDC | Right Angle Through Hole | Copper Alloy | Push-Pull | 0.76 Ám | 30 Áin | Gold | Plastic | Audio Video | 4 | Mini DIN | -55 C | 105 ░C | Keyed | Polyester | Shielded | Receptacle Female Sockets | Solder |
