OSTTB06 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 6POS TOP ENT 5.08MM PCB
| Part | Screw Material - Plating | Clamp Material - Plating [custom] | Screw Thread | Housing Material | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Wire Termination | Wire Gauge [Min] | Wire Gauge [Max] | Color | Features | Mounting Type | Number of Levels | Current | Pitch | Pitch | Mating Orientation | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

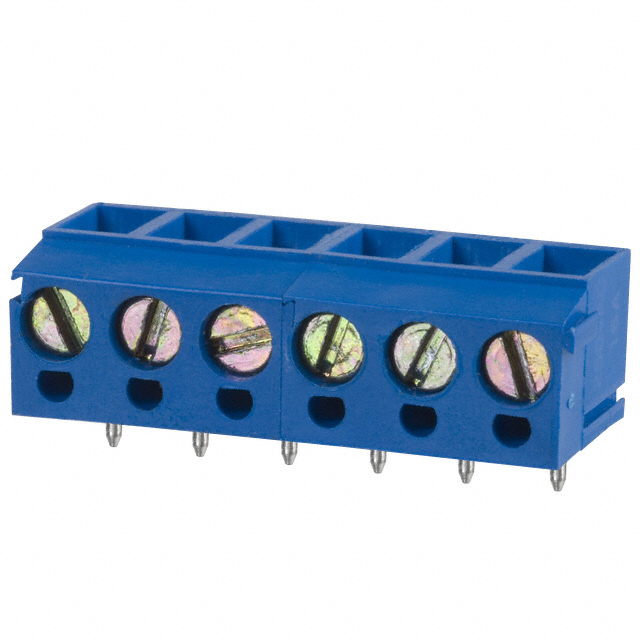

 On Shore Technology Inc. | Steel - Zinc Plated | Stainless Steel | M3 | Thermoplastic | Tin Plated | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Screw - Leaf Spring Wire Guard | 14 AWG | 22 AWG | Blue | Interlocking (Side) | Through Hole | 1 | 15 A | 5.08 mm | 0.2 in | Vertical with Board | 6 |

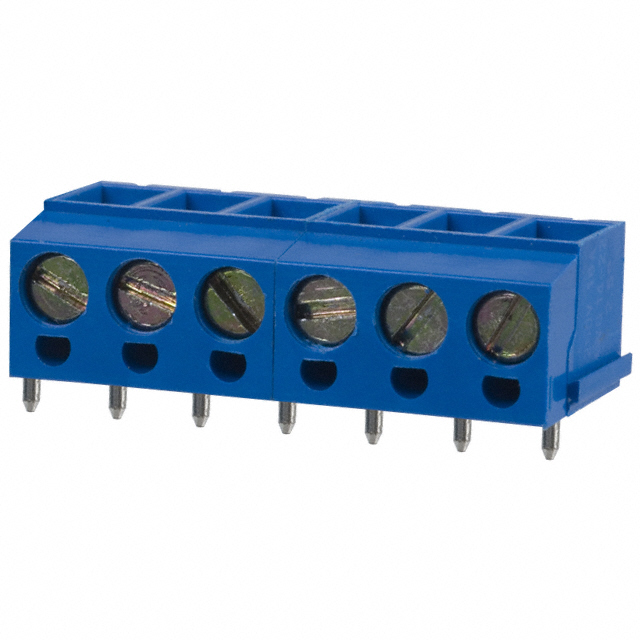

 On Shore Technology Inc. | Steel - Zinc Plated | Stainless Steel | M3 | Thermoplastic | Tin Plated | -30 ░C | 105 ░C | 2.6 Lb-In | 0.3 Nm | Screw - Leaf Spring Wire Guard | 14 AWG | 22 AWG | Blue | Interlocking (Side) | Through Hole | 1 | 16 A | 5 mm | 0.197 in | Vertical with Board | 6 |
