EB2011 Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

...

Part	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Type	Voltage Rating - AC	Mounting Type	Color - Actuator/Cap	Termination Style	Circuit	Current Rating (Amps)	Actuator Marking	Switch Function	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Illumination Voltage (Nominal)	Voltage Rating - DC
NKK Switches EB2011-B-J41C	100000 Cycles	25000 Steps	70 °C	-10 °C	Epoxy Sealed Terminals	Standard	15 mm	12.5 mm	Button Square	125 V	Panel Mount Snap-In	White	Solder Lug	SPDT	3 A	No Marking	On-Mom
NKK Switches EB2011P-CC	100000 Cycles	25000 Steps	70 °C	-10 °C	Epoxy Sealed Terminals	Standard			Button Round	125 V	Panel Mount Rear	Red	PC Pin	SPDT	3 A	No Marking	On-Mom	0.25 in
NKK Switches EB2011-F-J21F	100000 Cycles	25000 Steps	70 °C	-10 °C	Epoxy Sealed Terminals	Standard	15 mm	12.5 mm	Button Square	125 V	Panel Mount Snap-In	Green	Solder Lug	SPDT	3 A	No Marking	On-Mom
NKK Switches EB2011/U	100000 Cycles	25000 Steps	70 °C	-10 °C	Epoxy Sealed Terminals	Standard			Plunger for Cap	125 V	Panel Mount Rear		Solder Lug	SPDT	3 A	No Marking	On-Mom	0.25 in
NKK Switches EB2011-C-J21H	100000 Cycles	25000 Steps	70 °C	-10 °C	Epoxy Sealed Terminals	Standard	15 mm	12.5 mm	Button Square	125 V	Panel Mount Snap-In	Red	Solder Lug	SPDT	3 A	No Marking	On-Mom
NKK Switches EB2011-C-J24AFE	100000 Cycles	25000 Steps	70 °C	-10 °C	Epoxy Sealed Terminals	Illuminated Standard	18.4 mm	15 mm	Button Square	125 V	Panel Mount Snap-In	Red	Solder Lug	SPDT	3 A	No Marking	On-Mom		Green/Yellow LED	2 VDC 2.1 VDC
NKK Switches EB2011G-C-J21A	100000 Cycles	50000 Cycles	70 °C	-10 °C	Epoxy Sealed Terminals	Standard	15 mm	12.5 mm	Button Square	28 V	Panel Mount Snap-In	Red	Solder Lug	SPDT	0.4 VA	No Marking	On-Mom				28 V
NKK Switches EB2011P-A-J43ACF	100000 Cycles	25000 Steps	70 °C	-10 °C	Epoxy Sealed Terminals	Illuminated Standard	18.4 mm	15 mm	Button Square	125 V	Panel Mount Snap-In	Black	PC Pin	SPDT	3 A	No Marking	On-Mom		Green/Red LED	2 VDC 2.25 VDC

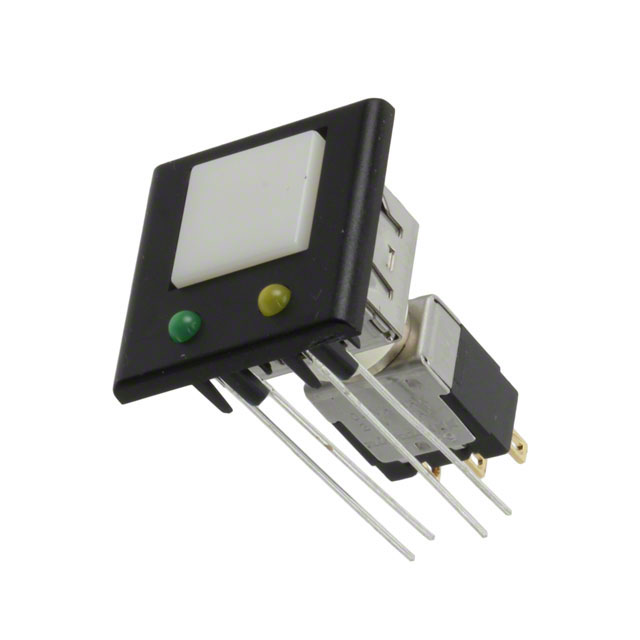

NKK Switches EB2011G-B-J23AFE	100000 Cycles	50000 Cycles	70 °C	-10 °C	Epoxy Sealed Terminals	Illuminated Standard	18.4 mm	15 mm	Button Square	28 V	Panel Mount Snap-In	White	Solder Lug	SPDT	0.4 VA	No Marking	On-Mom		Green/Yellow LED	2.1 VDC 2.25 VDC	28 V

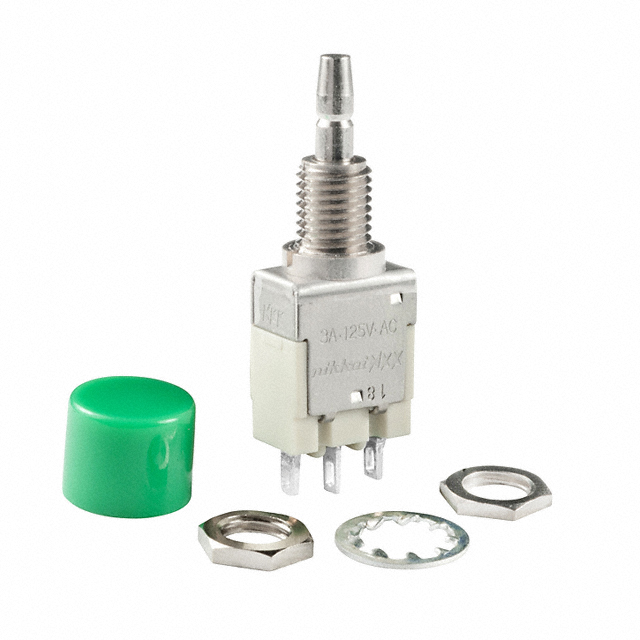

NKK Switches EB2011-CF	100000 Cycles	25000 Steps	70 °C	-10 °C	Epoxy Sealed Terminals	Standard			Button Round	125 V	Panel Mount Rear	Green	Solder Lug	SPDT	3 A	No Marking	On-Mom	0.25 in
