D16EES12 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON DPDT 8A 125V

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Marking	Current Rating (Amps)	Circuit	Mounting Type	Voltage Rating - AC	Illumination Voltage (Nominal)	Color - Actuator/Cap	Type	Termination Style	Actuator Type	Illumination Type, Color [custom]	Illumination Type, Color [custom]

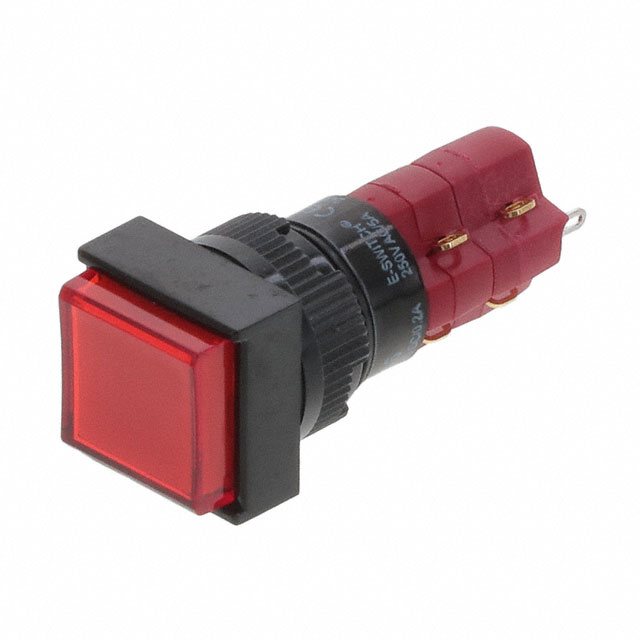

E-Switch D16EES12MRED	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	Incandescent Red	On-On	16 mm	No Marking	6 A 8 A	DPDT	Panel Mount Front	125 V	6 VAC/DC	Red	Illuminated Standard	Solder Lug	Button Square
E-Switch D16EES12BGRN	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	Green Incandescent	On-On	16 mm	No Marking	6 A 8 A	DPDT	Panel Mount Front	125 V		Green	Illuminated Standard	Solder Lug	Button Square
E-Switch D16EES12NRED	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	Incandescent Red	On-On	16 mm	No Marking	6 A 8 A	DPDT	Panel Mount Front	125 V		Red	Illuminated Standard	Solder Lug	Button Square
E-Switch D16EES12CWHT	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	Incandescent White	On-On	16 mm	No Marking	6 A 8 A	DPDT	Panel Mount Front	125 V	28 VAC/DC	White	Illuminated Standard	Solder Lug	Button Square
E-Switch D16EES12FGRNWHT	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C		On-On	16 mm	No Marking	6 A 8 A	DPDT	Panel Mount Front	125 V	110 VAC	White	Illuminated Standard	Solder Lug	Button Square	Neon	Green

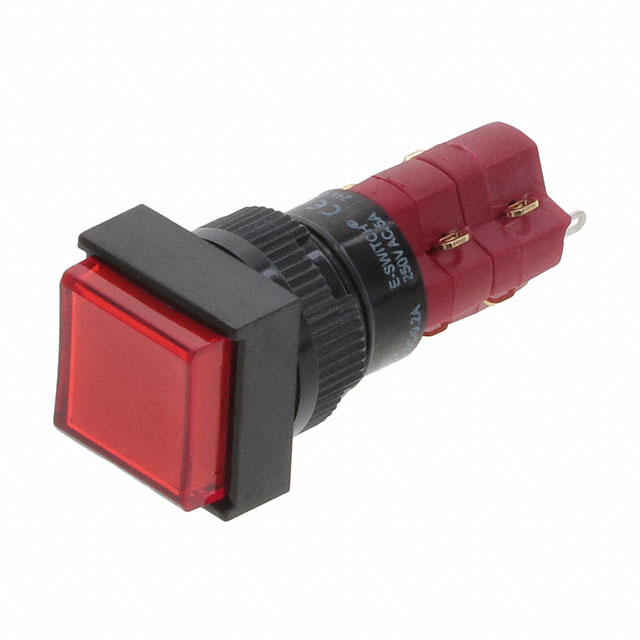

E-Switch D16EES12HREDRED	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	LED Red	On-On	16 mm	No Marking	6 A 8 A	DPDT	Panel Mount Front	125 V	6 VDC	Red	Illuminated Standard	Solder Lug	Button Square
E-Switch D16EES12KYELYEL	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	LED Yellow	On-On	16 mm	No Marking	6 A 8 A	DPDT	Panel Mount Front	125 V	24 V	Yellow	Illuminated Standard	Solder Lug	Button Square
E-Switch D16EES12HYELYEL	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	LED Yellow	On-On	16 mm	No Marking	6 A 8 A	DPDT	Panel Mount Front	125 V	6 VDC	Yellow	Illuminated Standard	Solder Lug	Button Square
