902-0155 Series
Manufacturer: ROBOTIS
Beta
⌘K

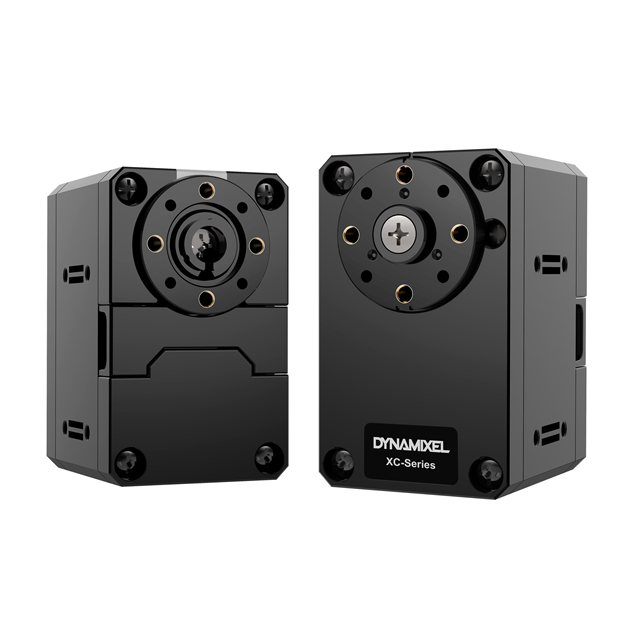

XC430-W150-T DYNAMIXEL SERVO
| Part | Weight | Weight | Voltage - Rated | Motor Type | Encoder Type | Termination Style | Function | Torque - Max Momentary (oz-in / mNm) [custom] | Torque - Max Momentary (oz-in / mNm) [custom] | Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Features | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Gear Reduction Ratio |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ROBOTIS | 0.143 lb | 65 g | 12 VDC | Brushed | Absolute | Connector | Servomotor | 226.6 oz-in | 1600 mNm | DC Motor | 1.122 in | 28.5 mm | 46.5 mm | 1.83 in | Integrated Controller | 106 RPM | 80 °C | -5 °C | 159.6 |
