895-072 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 72POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Contact Material	Gender	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows [custom]	Number of Positions	Mounting Type	Number of Positions/Bay/Row	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Termination	Pitch	Pitch	Contact Type	Card Type	Card Thickness [Max]	Card Thickness [Min]	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]
EDAC Inc. 895-072-542-503	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Dual	Copper Alloy	Female	0.25 Ám	10 Áin	Black	2	72	Through Hole	36	Gold	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Wire Wrap	0.1 "	2.54 mm	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm

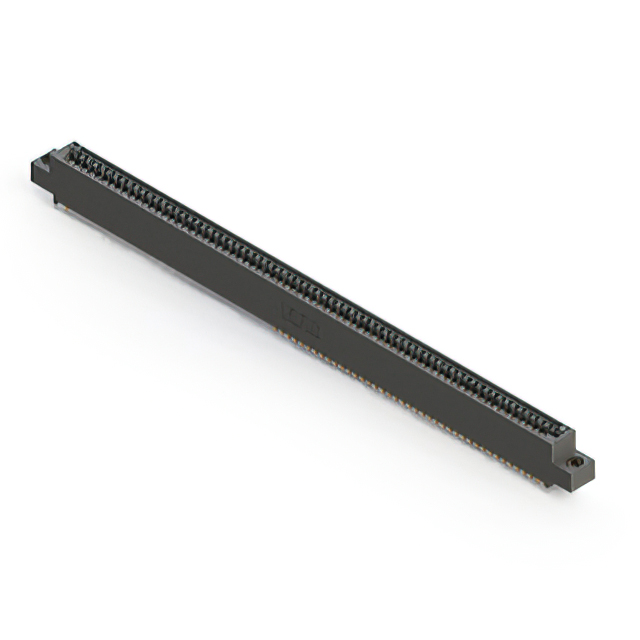

EDAC Inc. 895-072-558-408		Polyphenylene Sulfide (PPS)	125 °C	-40 C	Single	Copper Alloy	Female	0.25 Ám	10 Áin	Black		72	Right Angle Through Hole		Gold	4-40 Threaded Insert Top Mount Opening			Solder	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1	72
EDAC Inc. 895-072-544-212	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Dual	Copper Alloy	Female	0.25 Ám	10 Áin	Black	2	72	Through Hole	36	Gold	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Wire Wrap	0.1 "	2.54 mm	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 895-072-521-603		Polyphenylene Sulfide (PPS)	125 °C	-40 C	Single	Copper Alloy	Female	0.25 Ám	10 Áin	Black		72	Through Hole		Gold	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Solder	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1	72

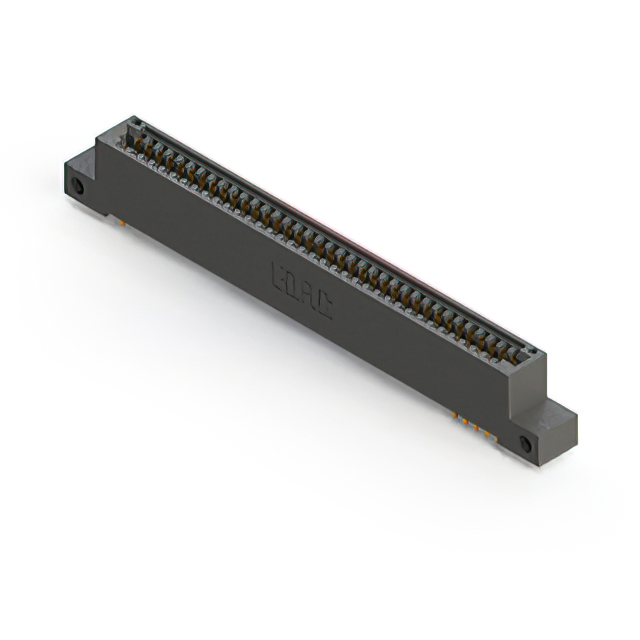

EDAC Inc. 895-072-542-212	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Dual	Copper Alloy	Female	0.25 Ám	10 Áin	Black	2	72	Through Hole	36	Gold	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Wire Wrap	0.1 "	2.54 mm	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 895-072-558-412		Polyphenylene Sulfide (PPS)	125 °C	-40 C	Single	Copper Alloy	Female	0.25 Ám	10 Áin	Black		72	Right Angle Through Hole		Gold	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Solder	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1	72

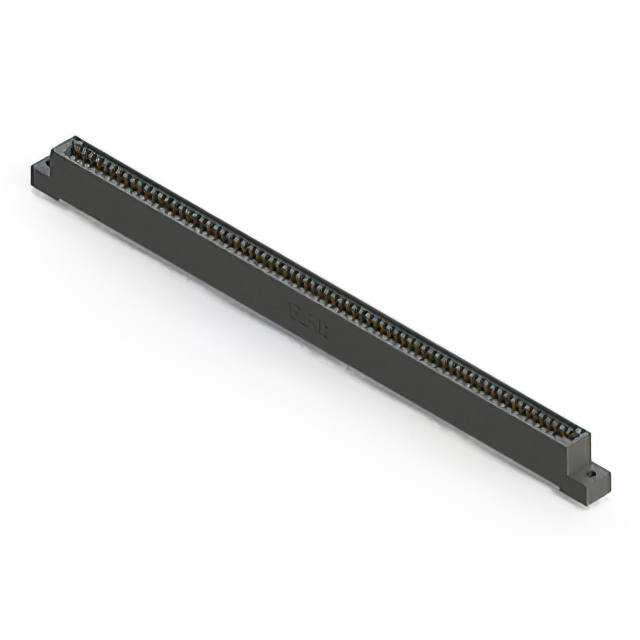

EDAC Inc. 895-072-524-102		Polyphenylene Sulfide (PPS)	125 °C	-40 C	Single	Copper Alloy	Female	0.25 Ám	10 Áin	Black		72	Through Hole		Gold	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Solder	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1	72
EDAC Inc. 895-072-542-512	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Dual	Copper Alloy	Female	0.25 Ám	10 Áin	Black	2	72	Through Hole	36	Gold	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Wire Wrap	0.1 "	2.54 mm	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm

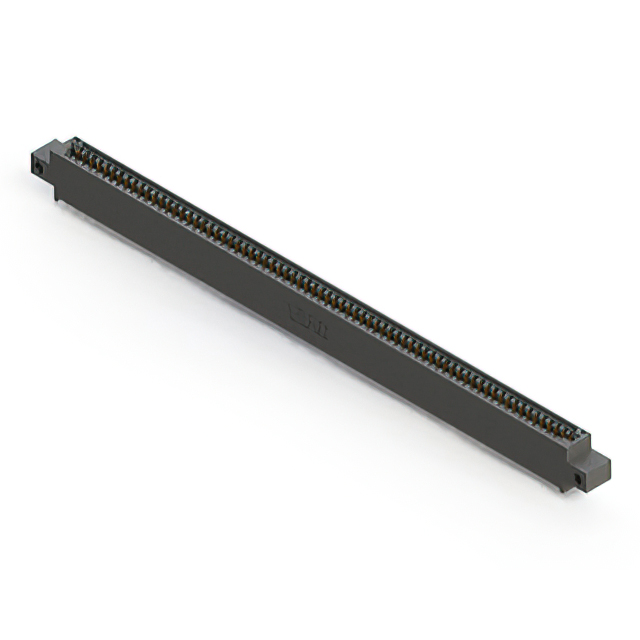

EDAC Inc. 895-072-521-612		Polyphenylene Sulfide (PPS)	125 °C	-40 C	Single	Copper Alloy	Female	0.25 Ám	10 Áin	Black		72	Through Hole		Gold	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Solder	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1	72
EDAC Inc. 895-072-559-102		Polyphenylene Sulfide (PPS)	125 °C	-40 C	Single	Copper Alloy	Female	0.25 Ám	10 Áin	Black		72	Right Angle Through Hole		Gold	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Solder	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1	72
