DSUB Series

Catalog

CABLE ASSY DB09 SHLD BLACK 3.05M

Part	Contact Finish	Length	Length	Type	1st Connector	Color	Number of Positions	Shielding	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Per Contact)	Control Side Cable Retainer	Wire Gauge [Min]	Wire Gauge [Max]	Control Side Connection	Process Side Connection	Positions / Poles	Positions / Poles [custom]

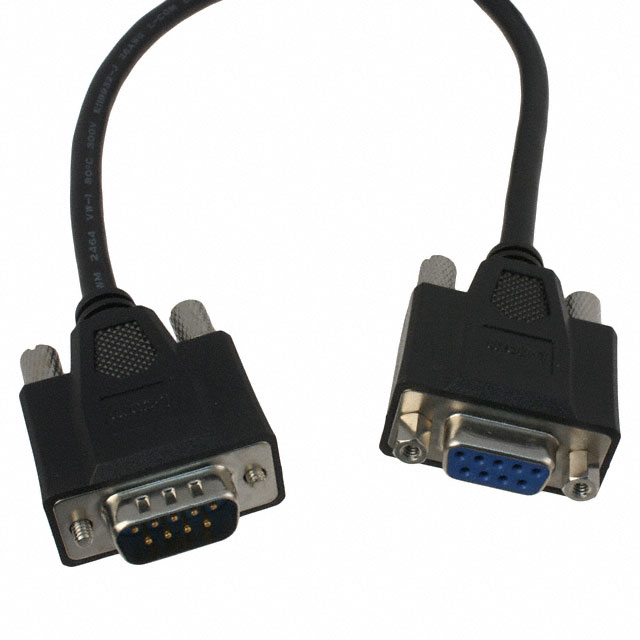

American Electrical Inc. LDSUB-9-MF-CBL	Tin	3.05 m	10 ft	DB9	Receptacle Female Sockets	Black Individual (Round)	9	Shielded	Plug Male Pins
American Electrical Inc. LDSUB-9-MF										50 °C	-10 °C	1 A	Jackscrew Socket	14 AWG	22 AWG	D-Sub Female D-Sub Male	Terminal Blocks - Screw Connection	9

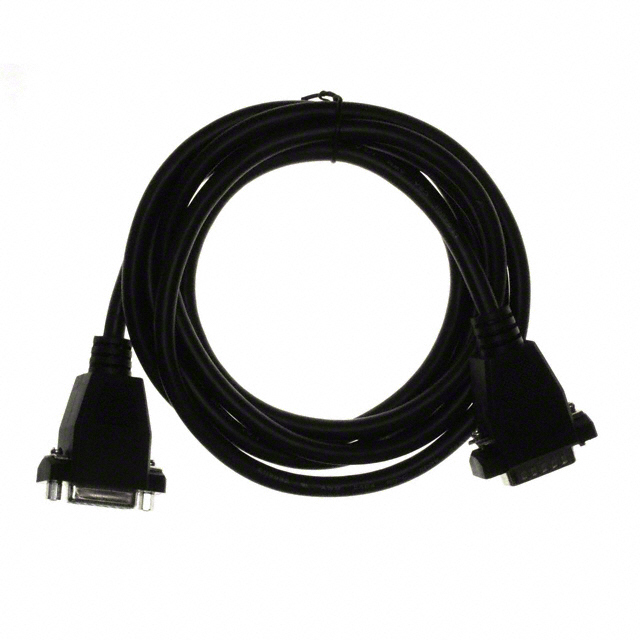

American Electrical Inc. LDSUB-15-MF-CBL	Tin	2 m	6.56 ft	DB15	Receptacle Female Sockets	Black Individual (Round)	15	Shielded	Plug Male Pins

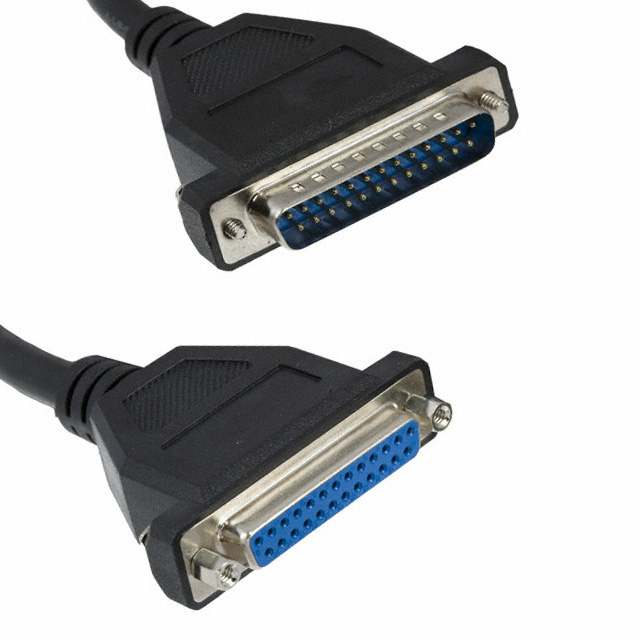

American Electrical Inc. LDSUB-25-MF-CBL	Tin	2 m	6.56 ft	DB25	Receptacle Female Sockets	Black Individual (Round)	25	Shielded	Plug Male Pins

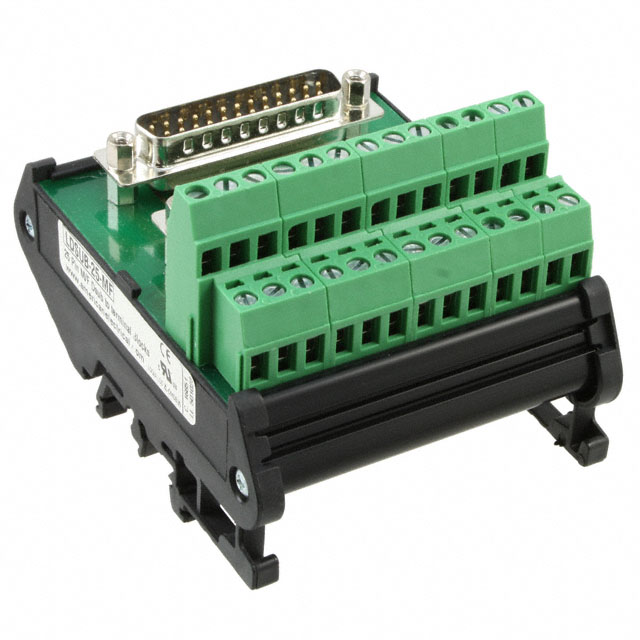

American Electrical Inc. LDSUB-25-MF										50 °C	-10 °C	1 A	Jackscrew Socket	14 AWG	22 AWG	D-Sub Female D-Sub Male	Terminal Blocks - Screw Connection		25
