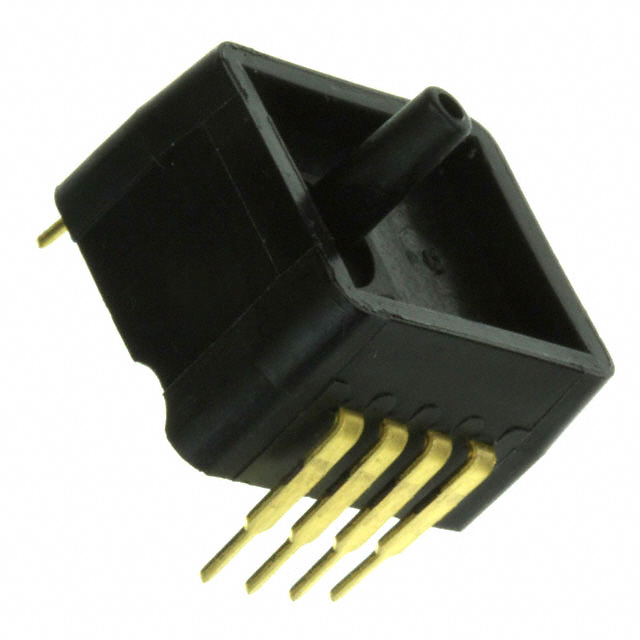

ASDXAVX005 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 5PSIG 0.09" 4.5V
| Part | Package / Case | Termination Style | Operating Pressure | Operating Pressure | Maximum Pressure [Max] | Maximum Pressure [Max] | Port Size | Port Size | Output [Min] | Output [Max] | Applications | Mounting Type | Port Style | Operating Temperature [Min] | Operating Temperature [Max] | Accuracy | Voltage - Supply [Min] | Voltage - Supply [Max] | Pressure Type | Output Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 8-DIP Module | PC Pin | 34.47 kPa | 5 PSI | 10 PSI | 68.95 kPa | 0.09 " 2.31 mm | Male | 0.5 V | 4.5 V | Board Mount | Through Hole | Barbless | -20 C | 105 ░C | 2 % | 4.75 V | 5.25 V | Vented Gauge | Analog Voltage | Temperature Compensated |
