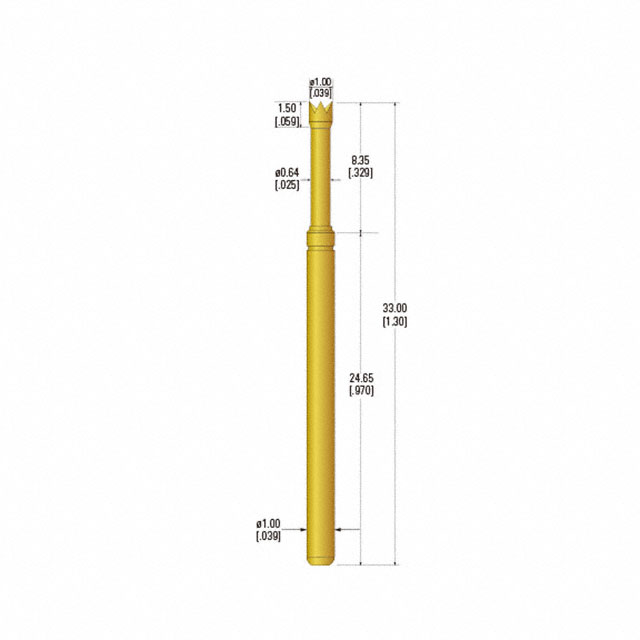

TOP075 Series

Catalog

ICT SPRING CONTACT TEST PROBE

Part	Material - Body	Length - Tip [x]	Length - Tip [x]	Material - Tip [custom]	Current Rating (Amps)	Tip Type	Tip Type	Tip Type	Length - Overall [x]	Length - Overall [x]	Tip Type [diameter]	Tip Type [diameter]	Tip Type [diameter]
Chip Shine / CSRF TOP075W064/200G	Phosphor Copper Gold Plated	9.85 mm	0.388 in	Beryllium Copper Gold Plated Steel	3 A	Spring Tip - Dagger Head	0.025 in	0.64 mm	1.3 "	33 mm
Chip Shine / CSRF TOP075T12/280G	Phosphor Copper Gold Plated	9.85 mm	0.388 in	Beryllium Copper Gold Plated Steel	3 A	Spring Tip - Crown Head			1.3 "	33 mm	1.2 mm	0.047 in
Chip Shine / CSRF TOP075WN064/200G	Phosphor Copper Gold Plated	9.85 mm	0.388 in	Beryllium Copper Gold Plated Steel	3 A	Spring Tip - Double Dagger Head		0.025 " 0.64 mm	1.3 "	33 mm
Chip Shine / CSRF TOP075RF065/200G	Phosphor Copper Gold Plated	9.85 mm	0.388 in	Beryllium Copper Gold Plated Steel	3 A	Spring Tip - Needle Head			1.3 "	33 mm
Chip Shine / CSRF TOP075I064/100G	Phosphor Copper Gold Plated	9.85 mm	0.388 in	Beryllium Copper Gold Plated Steel	3 A	Spring Tip - Serrated Head			1.3 "	33 mm	0.025 in		0.64 mm
Chip Shine / CSRF TOP075H05/200G	Phosphor Copper Gold Plated	9.85 mm	0.388 in	Beryllium Copper Gold Plated Steel	3 A	Spring Tip - Crown Head			1.3 "	33 mm	0.5 mm	0.02 in
Chip Shine / CSRF TOP075I064/200G	Phosphor Copper Gold Plated	9.85 mm	0.388 in	Beryllium Copper Gold Plated Steel	3 A	Spring Tip - Serrated Head			1.3 "	33 mm	0.025 in		0.64 mm
Chip Shine / CSRF TOP075W064/280G	Phosphor Copper Gold Plated	9.85 mm	0.388 in	Beryllium Copper Gold Plated Steel	3 A	Spring Tip - Dagger Head	0.025 in	0.64 mm	1.3 "	33 mm
Chip Shine / CSRF TOP075E12/200G	Phosphor Copper Gold Plated	9.85 mm	0.388 in	Beryllium Copper Gold Plated Steel	3 A	Spring Tip - Cup Head		1.2 mm	1.3 "	33 mm		0.047 in
Chip Shine / CSRF TOP075T12/200G	Phosphor Copper Gold Plated	9.85 mm	0.388 in	Beryllium Copper Gold Plated Steel	3 A	Spring Tip - Crown Head			1.3 "	33 mm	1.2 mm	0.047 in
