G5015 Series

Catalog

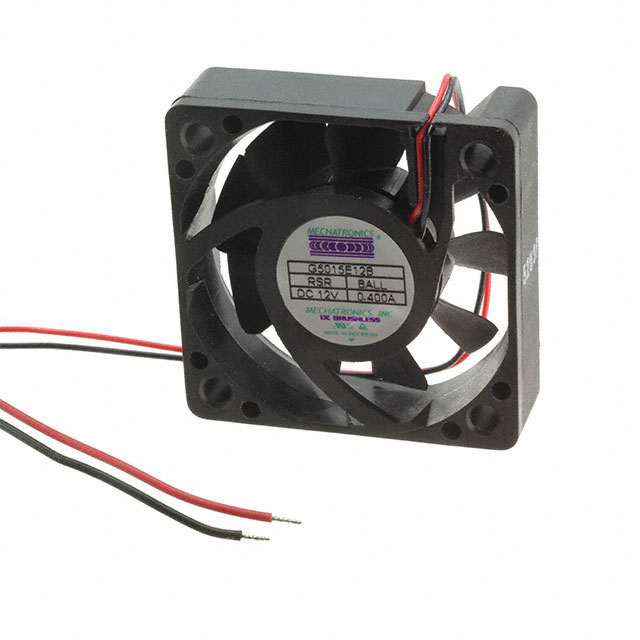

FAN AXIAL 50X15MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	RPM	Width [y]	Voltage - Rated	Features	Approval Agency	Termination	Static Pressure	Static Pressure	Noise	Weight [custom]	Weight [custom]	Air Flow	Air Flow
Mechatronics Fan Group G5015M12B-RSR	Polybutylene Terephthalate (PBT)	0.2 A	Tubeaxial	50 mm	50 mm	Ball	4500 RPM	15 mm	12 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL	2 Wire Leads	0.11 in H2O	27.4 Pa	24 dB	0.077 lb	34.93 g

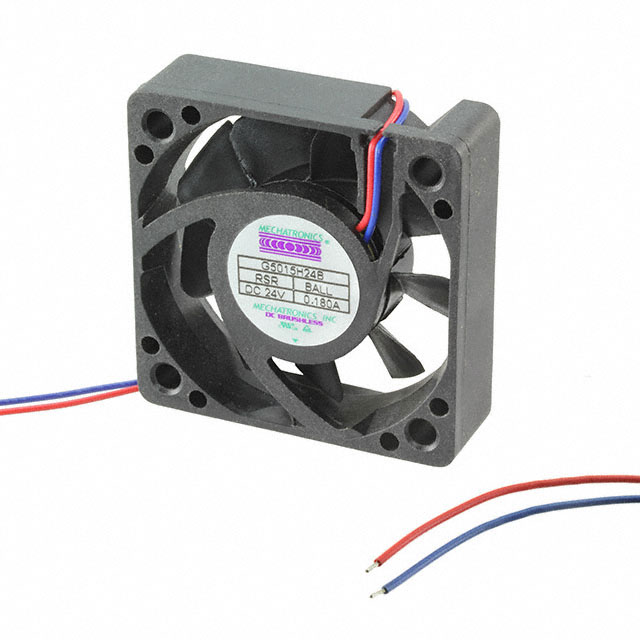

Mechatronics Fan Group G5015H24B-RSR	Polybutylene Terephthalate (PBT)	0.18 A	Tubeaxial	50 mm	50 mm	Ball	5500 RPM	15 mm	24 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL	2 Wire Leads	0.17 in H2O	42.3 Pa	29 dB(A)	0.077 lb	34.93 g	0.364 mł/min	13 CFM
Mechatronics Fan Group G5015E12B-RSR	Polybutylene Terephthalate (PBT)	400 mA	Tubeaxial	50 mm	50 mm	Ball	6500 RPM	15 mm	12 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL	2 Wire Leads	0.22 in H2O	54.8 Pa	34 dB(A)	0.077 lb	34.93 g	0.448 mł/min	16 CFM
Mechatronics Fan Group G5015M24B-RSR	Polybutylene Terephthalate (PBT)	140 mA	Tubeaxial	50 mm	50 mm	Ball	4500 RPM	15 mm	24 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL	2 Wire Leads	0.11 in H2O	27.4 Pa	24 dB	0.077 lb	34.93 g

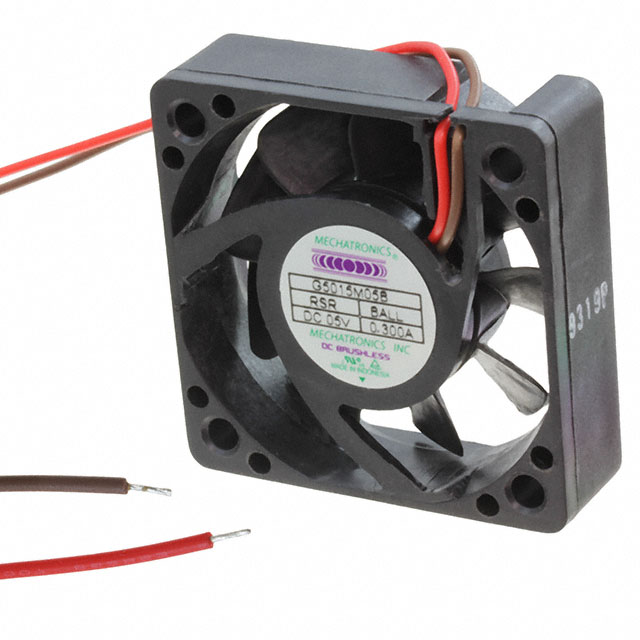

Mechatronics Fan Group G5015M05B-RSR	Polybutylene Terephthalate (PBT)	0.3 A	Tubeaxial	50 mm	50 mm	Ball	4500 RPM	15 mm	5 V	Thermal Overload Protector (TOP)	CE cUL TUV UL	2 Wire Leads	0.11 in H2O	27.4 Pa	24 dB	0.077 lb	34.93 g	0.308 m³/min	11 CFM
Mechatronics Fan Group G5015H05B-RSR	Polybutylene Terephthalate (PBT)	400 mA	Tubeaxial	50 mm	50 mm	Ball	5500 RPM	15 mm	5 V	Thermal Overload Protector (TOP)	CE cUL TUV UL	2 Wire Leads	0.17 in H2O	42.3 Pa	29 dB(A)	0.077 lb	34.93 g	0.364 mł/min	13 CFM
