EM-SGL-PG9 Series

Catalog

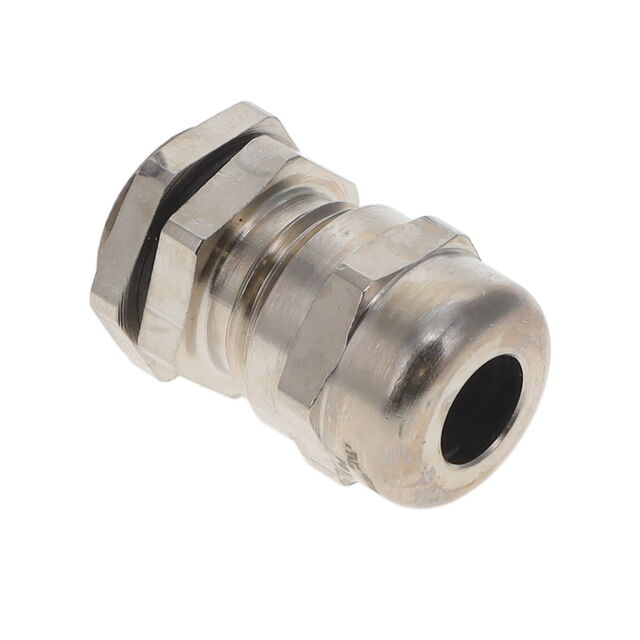

CABLE GLAND 4-8MM PG9 BRASS

Part	Ingress Protection	Material	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Type	Thread Size
TE Connectivity AMP Connectors EM-SGL-PG9-MET-C	IP68 - Dust Tight Waterproof	Brass Nickel Plated	6 mm	0.236 in	4 mm	0.157 in	Locknut Seal	8 mm	0.315 in	Silver	-20 ░C	100 °C	Cable Gland	PG9
