1V Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
LINE FILTER 250VAC 1A CHASS MNT
| Part | Current | Termination Style | Voltage - Rated AC | Frequency - Operating [Max] | Frequency - Operating [Min] | Applications | Configuration | Approval Agency | Inductance | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

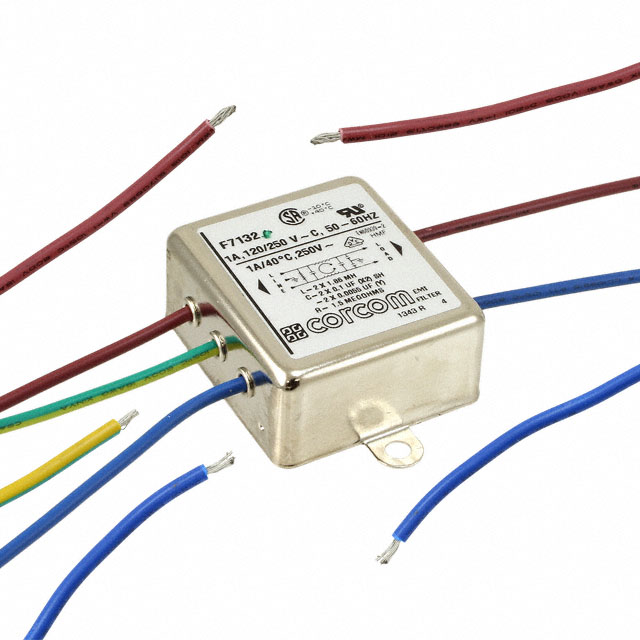

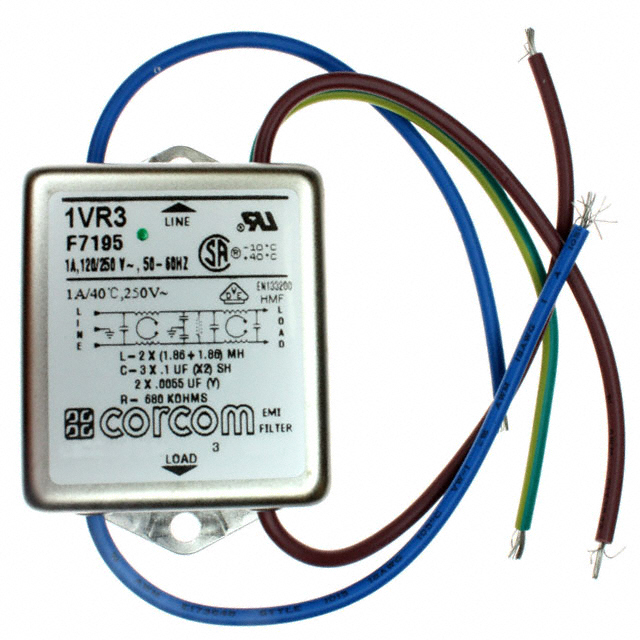

 TE Connectivity Raychem Cable Protection | 1 A | Wire Leads | 250 V | 60 Hz | 50 Hz | General Purpose | Two Stage | CSA UR VDE | 3.72 mH | -10 °C | 40 °C | Chassis Mount | Single Phase |

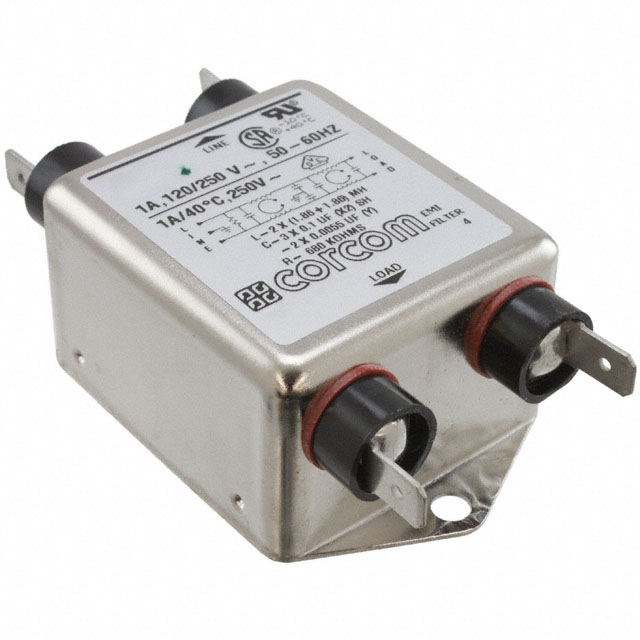

 TE Connectivity Raychem Cable Protection | 1 A | Quick Connect | 250 V | 60 Hz | 50 Hz | General Purpose | Two Stage | CSA UR VDE | 3.72 mH | -10 °C | 40 °C | Chassis Mount | Single Phase |
 TE Connectivity Raychem Cable Protection | 1 A | Wire Leads | 250 V | 60 Hz | 50 Hz | General Purpose | Single Stage | CSA UR VDE | -10 °C | 40 °C | Chassis Mount | Single Phase |
