LCA350 Series
Manufacturer: Panduit Corp
Beta
⌘K

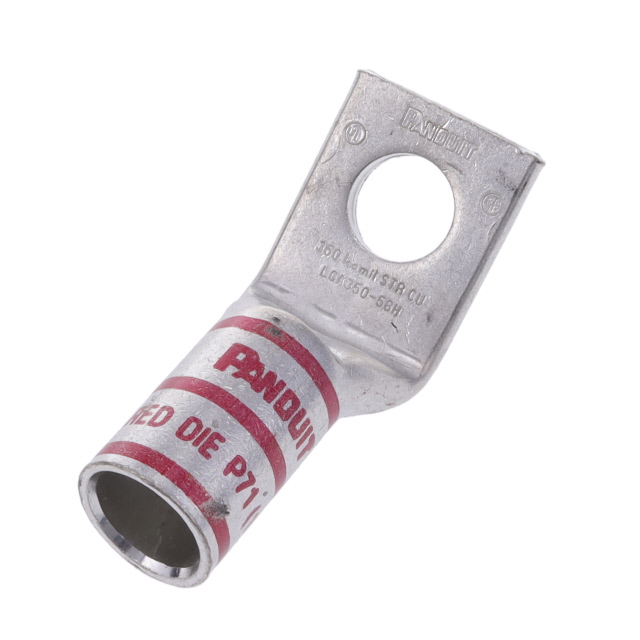

350 KCMIL CABLE, 45 ANGLE TONGUE, 5/8" BOLT HOLE ROHS COMPLIANT: YES
| Part | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Contact Finish | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Material | Mounting Type | Terminal Style | Color | Wire Gauge | Terminal Type | Tab Thickness | Tab Thickness | Width - Outer Edges [x] | Width - Outer Edges | Insulation | Termination | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] | Diameter - Ring ID | Diameter - Ring ID |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 0.7 in | 17.78 mm | 16.76 mm | 0.66 in | Electro-Tin | 22.35 mm | 0.88 in | Copper | Free Hanging (In-Line) | Single Stud Hole | Red | 350 MCM (kcmil) | Rectangular Tongue | 4.32 mm | 0.17 in | 1.28 " | 32.51 mm | Non-Insulated | Barrel Crimp | 0.625 Stud | ||||
 Panduit Corp | 0.7 in | 17.78 mm | 10.41 mm | 0.41 " | Electro-Tin | 22.35 mm | 0.88 in | Copper | Free Hanging (In-Line) | Single Stud Hole | Red | 350 MCM (kcmil) | Rectangular Tongue | 4.32 mm | 0.17 in | 1.28 " | 32.51 mm | Non-Insulated | Barrel Crimp | 0.375 Stud | 75.44 mm | 2.97 in | ||
 Panduit Corp | 0.7 in | 17.78 mm | 10.41 mm | 0.41 " | Electro-Tin | 22.35 mm | 0.88 in | Copper | Free Hanging (In-Line) | Single Stud Hole | Red | 350 MCM (kcmil) | Rectangular Tongue | 4.32 mm | 0.17 in | 1.28 " | 32.51 mm | Non-Insulated | Barrel Crimp | 0.375 Stud | ||||
 Panduit Corp | 0.7 in | 17.78 mm | Electro-Tin | 22.35 mm | 0.88 in | Copper | Free Hanging (In-Line) | Single Stud Hole | Red | 350 MCM (kcmil) | Rectangular Tongue | 4.32 mm | 0.17 in | 1.28 " | 32.51 mm | Non-Insulated | Barrel Crimp | 0.5 Stud | 78.23 mm | 3.08 in | 13.46 mm | 0.53 in | ||
 Panduit Corp | 0.7 in | 17.78 mm | 10.41 mm | 0.41 " | Electro-Tin | 22.35 mm | 0.88 in | Copper | Free Hanging (In-Line) Right Angle | Single Stud Hole | Red | 350 MCM (kcmil) | Rectangular Tongue | 4.32 mm | 0.17 in | 1.28 " | 32.51 mm | Non-Insulated | Barrel Crimp | 0.375 Stud | ||||
Panduit Corp | 0.7 in | 17.78 mm | 16.76 mm | 0.66 in | Electro-Tin | 22.35 mm | 0.88 in | Copper | Free Hanging (In-Line) Right Angle | Single Stud Hole | Red | 350 MCM (kcmil) | Rectangular Tongue | 4.32 mm | 0.17 in | 1.28 " | 32.51 mm | Non-Insulated | Barrel Crimp | 0.625 Stud | ||||
 Panduit Corp | 0.7 in | 17.78 mm | Electro-Tin | 22.35 mm | 0.88 in | Copper | Free Hanging (In-Line) Right Angle | Single Stud Hole | Red | 350 MCM (kcmil) | Rectangular Tongue | 4.32 mm | 0.17 in | 1.28 " | 32.51 mm | Non-Insulated | Barrel Crimp | 0.5 Stud | 13.46 mm | 0.53 in |
