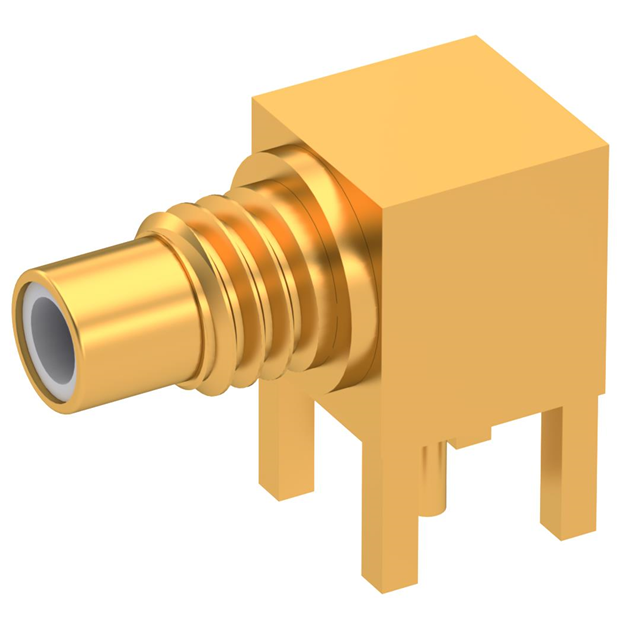

1010-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMC M RA NA
| Part | Body Material | Insertion Loss | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Connector Style | Mounting Type | Frequency - Max [Max] | Housing Color | Contact Termination | Shield Termination | Connector Type | Fastening Type | Number of Ports | Impedance | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | 0.5 dB | Gold | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | SMC | Right Angle Through Hole | 10 GHz | Gold | Solder | Solder | Jack Male Pin | Threaded | 1 | 50 Ohms | Brass |
