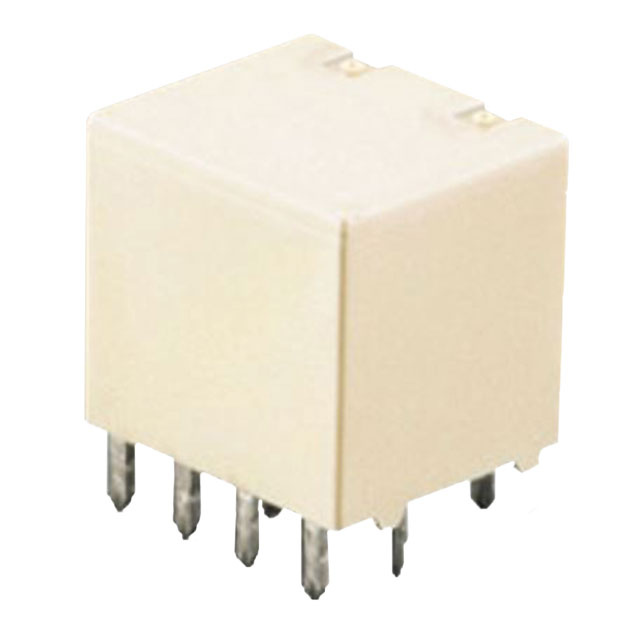

ACJ5112 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY AUTOMOTIVE SPDTX2 20A 12V
| Part | Contact Material | Coil Resistance | Coil Power | Switching Voltage | Must Operate Voltage | Coil Voltage | Contact Form | Operate Time | Coil Type | Contact Rating (Current) | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Coil Current | Release Time | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Silver Alloy Cadmium Free | 180 Ohms | 800 mW | 14 VDC | 6.5 VDC | 12 VDC | SPDT (1 Form C) x 2 | 10 ms | Non Latching | 20 A | Through Hole | Sealed - Flux Protection | 85 °C | -40 C | 0.8 VDC | 66.7 mA | 10 ms | PC Pin |
