DPS9131A Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

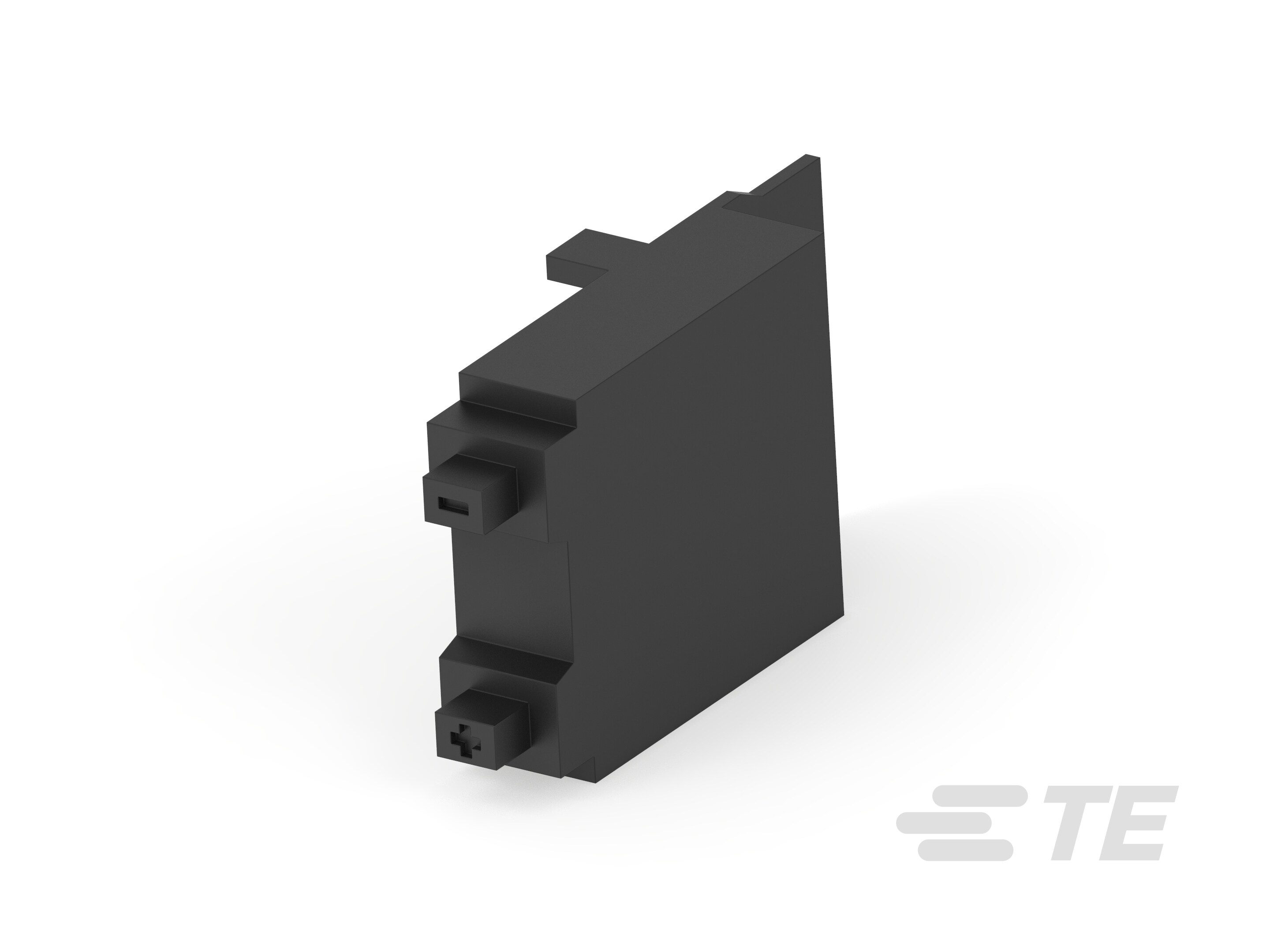

DPS9131AK=1-2-4-8 BCD CODE
| Part | Housing Material | Depth Behind Flange | Color | Display Characters - Height [z] | Display Characters - Height [z] | Mounting Type | Read Out [Max] | Read Out [Min] | Contact Rating @ Voltage | Termination Style | Section Width [custom] | Section Width [custom] | End Caps | Number of Sections | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Output Code | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyphenylene Oxide (PPO) | 39 mm | Black | 6.8 mm | 0.268 in | Panel Mount Snap-In | 9 | 0 | 0.4 VA 20 VAC/DC | Card Edge/Solder Pad | 8 mm | 0.315 in | Sold Separately | 1 | Pushwheel | 80 °C | -20 ░C | Copper Alloy | BCD | Gold |
