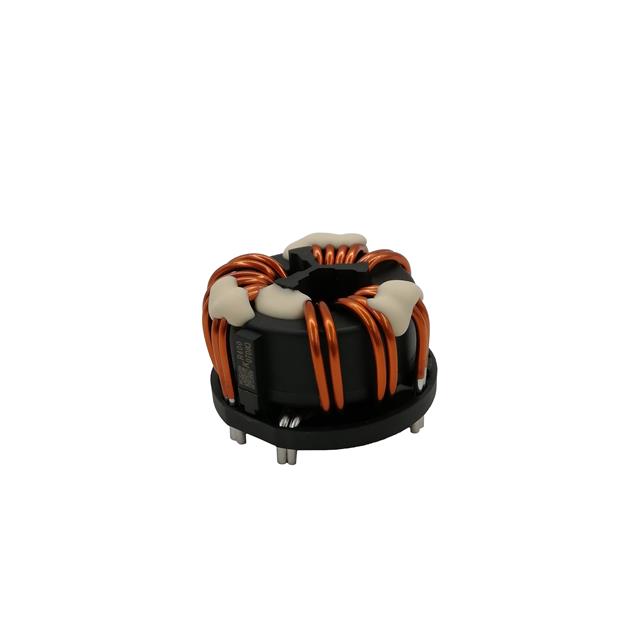

SCF XV Three Phase Series
Manufacturer: KEMET
Beta
⌘K
COMMON MODE CHOKES / FILTERS 1000V 2 MH 19 A 3-PHASE 3.690 MOHM AEC-Q200
| Part | Filter Type | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Features | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - DC | Voltage Rating - AC | Voltage Rating - AC | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Inductance @ Frequency | Current Rating (Max) [Max] | Package / Case | Number of Lines |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Power Line | 1.299 in | 33 mm | Nanocrystalline Core | AEC-Q200 | -40 C | 150 °C | 3.69 mOhm | 1 kV | 1 kVDC | 1 kV | 1 kV | 2.087 " | 53 mm | Through Hole | 2 mH | 19 A | Horizontal 6 PC Pin | 2 | |
Power Line | 1.299 in | 33 mm | Nanocrystalline Core | AEC-Q200 | -40 C | 150 °C | 0.4 mOhm | 1 kV | 1 kVDC | 1 kV | 1 kV | 2.087 " | 53 mm | Through Hole | 100 kHz 220 µH | 40 A | Horizontal 6 PC Pin | 2 | |
Power Line | 1.299 in | 33 mm | Nanocrystalline Core | AEC-Q200 | -40 C | 150 °C | 7.87 mOhm | 1 kV | 1 kVDC | 1 kV | 1 kV | 2.087 " | 53 mm | Through Hole | 4.9 mH | 14 A | Horizontal 6 PC Pin | 2 |
