MRF7 Series

Catalog

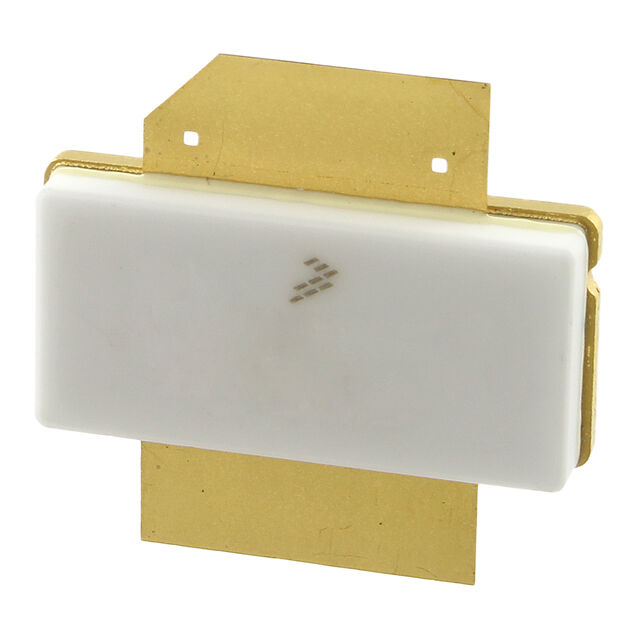

RF MOSFET LDMOS 28V NI780

Part	Voltage - Test	Package / Case	Frequency [Max]	Frequency [Min]	Voltage - Rated	Mounting Type	Gain	Power - Output	Current - Test	Supplier Device Package	Frequency
Freescale Semiconductor - NXP MRF7S16150HSR3	28 V	NI-780S	1.66 GHz	1.6 GHz	65 V	Chassis Mount	19.7 dB	32 W	1.5 A
Freescale Semiconductor - NXP MRF7S19100NBR1	28 V	TO-272BB	1.99 GHz	1.93 GHz	65 V	Chassis Mount	17.5 dBi	29 W	1 A	TO-272 WB-4
Freescale Semiconductor - NXP MRF7S38010HR3	30 V	NI-400-240	3.6 GHz	3.4 GHz	65 V	Chassis Mount	15 dB	2 W	160 mA	NI-400-240
Freescale Semiconductor - NXP MRF7S21210HSR5	28 V	NI-780S			65 V	Chassis Mount	18.5 dBi	63 W	1.4 A		2.17 GHz
Freescale Semiconductor - NXP MRF7S18125AHR5	28 V	SOT-957A			65 V	Chassis Mount	17 dBi	125 W	1.1 A	NI-780H-2L	1.88 GHz
Freescale Semiconductor - NXP MRF7S15100HSR3	28 V	NI-780S			65 V	Chassis Mount	19.5 dB		600 mA		1.51 GHz
Freescale Semiconductor - NXP MRF7S27130HSR5	28 V	NI-780S			65 V	Chassis Mount	16.5 dBi		1.5 A		2.7 GHz
Freescale Semiconductor - NXP MRF7S24250NR3	30 V	OM-780-2			65 V	Surface Mount	14.7 dB	256 W	100 mA	OM-780-2	2.45 GHz
Freescale Semiconductor - NXP MRF7S18125BHSR5	28 V	NI-780S			65 V	Chassis Mount	16.5 dBi	125 W	1.1 A		1.93 GHz
Freescale Semiconductor - NXP MRF7S19170HSR3	28 V	NI-880S			65 V	Surface Mount	17.2 dB	50 W	1.4 A	NI-880S	1.99 GHz
