M13302 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

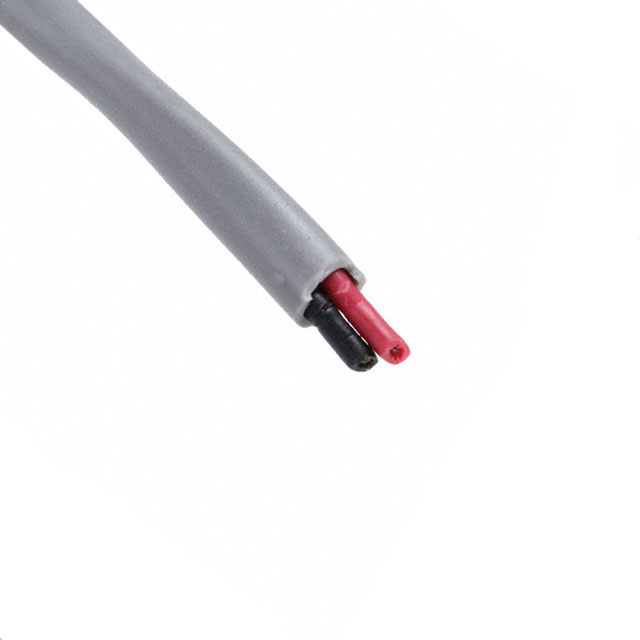

CABLE 2COND 22AWG SLATE
| Part | Conductor Insulation | Cable Type | Conductor Material | Number of Conductors | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Copper Tinned | 2 | 300 VDC | 28 AWG | 7 | UL Style 2509 | 0.635 mm | 0.025 in | Poly-Vinyl Chloride (PVC) | 0.174 in | 4.42 mm | Slate | 22 AWG | 80 °C | -20 ░C | ||
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Copper Tinned | 2 | 300 VDC | 28 AWG | 7 | UL Style 2509 | 0.635 mm | 0.025 in | Poly-Vinyl Chloride (PVC) | 0.174 in | 4.42 mm | Slate | 22 AWG | 80 °C | -20 ░C | 100 ft | 30.5 m |
