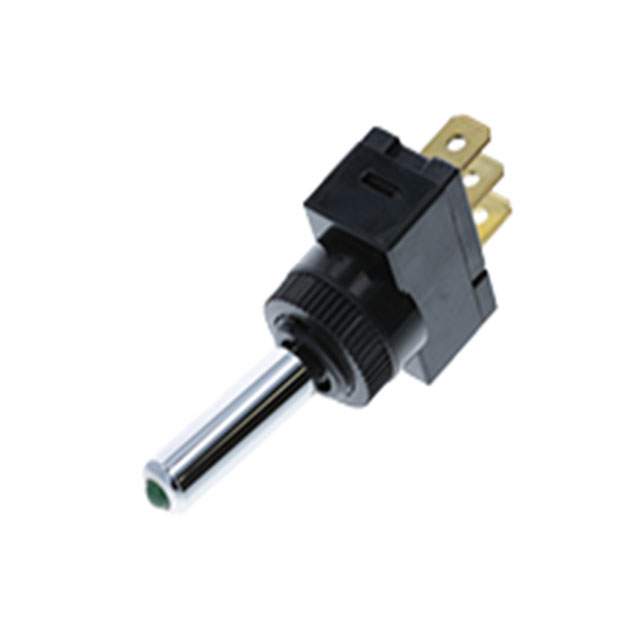

TE4-1A Series
Manufacturer: Switch Components
Beta
⌘K

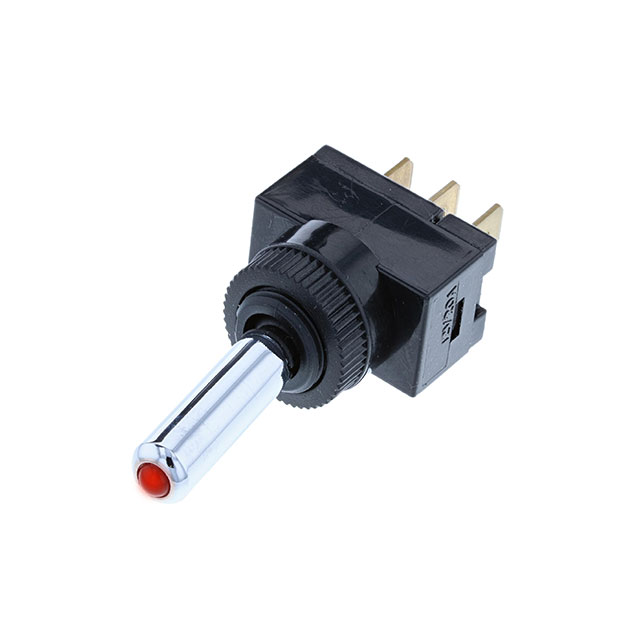

SWITCH TOGGLE SPST 20A 12V
| Part | Actuator Material | Electrical Life | Circuit | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Bushing Thread | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Mounting Type | Termination Style | Illumination Type, Color | Illumination Voltage (Nominal) | Actuator Length [x] | Illumination | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | Brass Chrome Plated | 6000 Cycles | SPST | 12.2 mm Dia | 20 A | M12 x 1 | On-Off | 85 °C | -25 °C | Standard Round | Panel Mount | Quick Connect - 0.250" (6.3mm) | LED Red | 12 VDC | 25 mm | Illuminated | 12 V |
