53K517 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN N TYPE JACK ST 50OHM SOLDER
| Part | Center Contact Plating | Body Material | Dielectric Material | Includes | Voltage Rating | Mating Cycles | Body Finish | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Mounting Type | Center Contact Material | Ingress Protection | Housing Color | Cable Group | Mounting Feature | Fastening Type | Frequency - Max [Max] | Connector Type | Impedance | Connector Style | Number of Ports | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

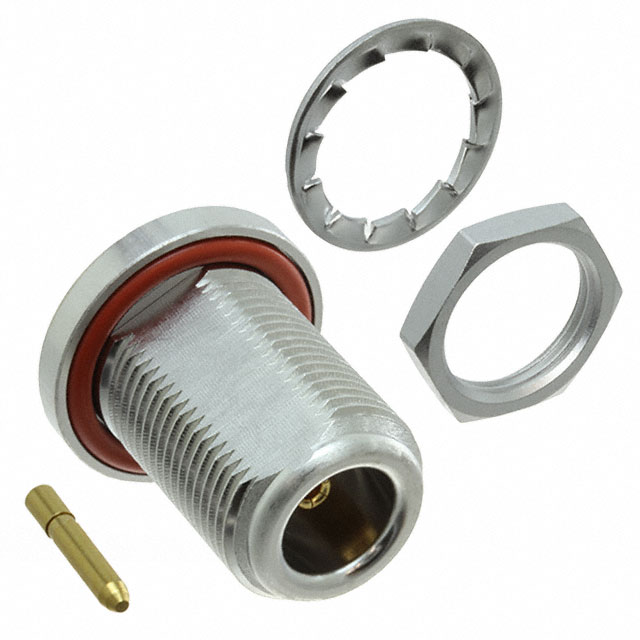

 Rosenberger | Gold | Brass | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Lockwasher 1 Nut | 500 V | 500 | White Bronze | 0.05 dB | -25 °C | 110 °C | Solder | Panel Mount | Bronze | IP67 - Dust Tight Waterproof | Silver | RG-405 (.085" Semi Rigid) | Bulkhead - Front Side Nut | Threaded | 11 GHz | Female Socket Jack | 50 Ohms | N Type | 1 | Solder |

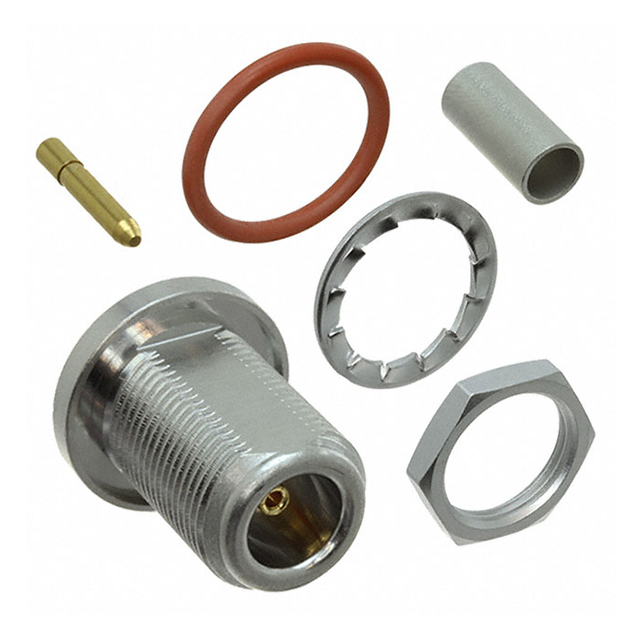

 Rosenberger | Gold | Brass | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | 500 V | 500 | White Bronze | 0.05 dB | -25 °C | 85 °C | Crimp | Panel Mount | Bronze | IP67 - Dust Tight Waterproof | Silver | 188A 316 RG-174A | Bulkhead - Front Side Nut | Threaded | 11 GHz | Female Socket Jack | 50 Ohms | N Type | 1 | Crimp |
