HPA1K5 Series
Manufacturer: XP Power
Beta
⌘K

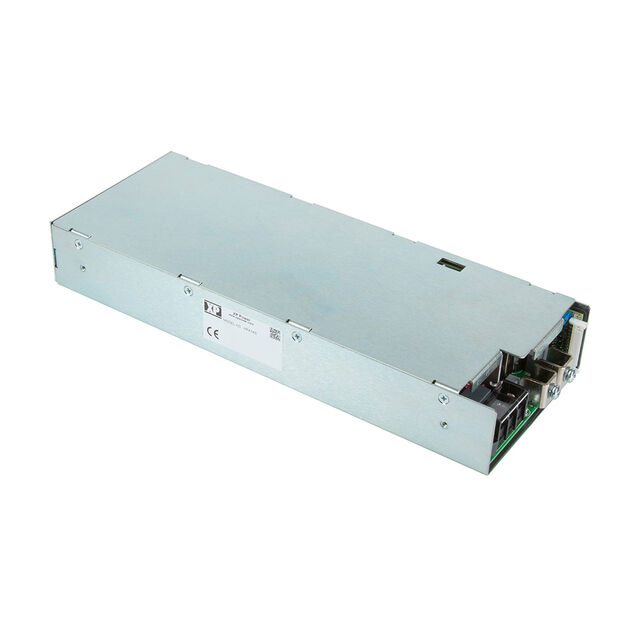

MODULAR POWER SUPPLIES 1.5KW AC-DC POWER SUPPLY, SINGLE OUTPUT 36VDC 41.7A PROGRAMMABLE 0 TO 37.8VDC
| Part | Minimum Load Required | Current - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Features | Efficiency | Power (Watts) | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Type | Standard Number | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Voltage - Isolation | Voltage - Output 1 [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 41.7 A | 11 in | 106.7 mm | 41.7 mm | 1.64 in | 279.4 mm | 4.2 in | Adjustable Output I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 92 % | 1501 W | ITE (Commercial) Medical | 70 °C | -20 °C | Enclosed | 60601-1 60950-1 62368-1 | CB CE EN UKCA UL | 264 VAC | 90 VAC | 1 | 4000 V | 36 V | Chassis Mount |
