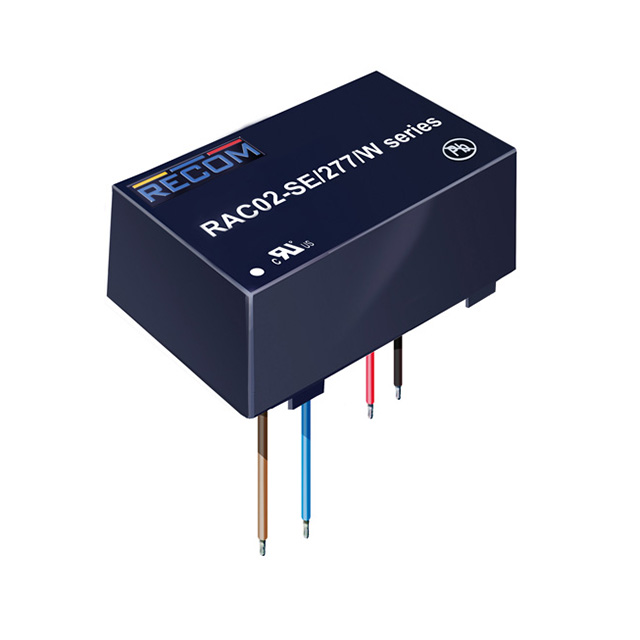

RAC02-SE/277/W Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUTS, 2 W, 12 V, 167 MA

Part	Voltage - Isolation	Efficiency	Number of Outputs	Type	Mounting Type	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Features	Applications	Power (Watts)	Voltage - Output 1	Current - Output 1
Recom Power RAC02-12SE/277/W	3000 V	73 %	1	Enclosed	Chassis Mount	CE cURus	305 VAC	85 VAC	-40 °C	85 °C	0.7 in	33.7 mm	1.33 in	0.96 in	24.4 mm	17.8 mm	DC Input Capable Universal Input	Household Appliances ITE (Commercial)	2 W	12 V	167 mA

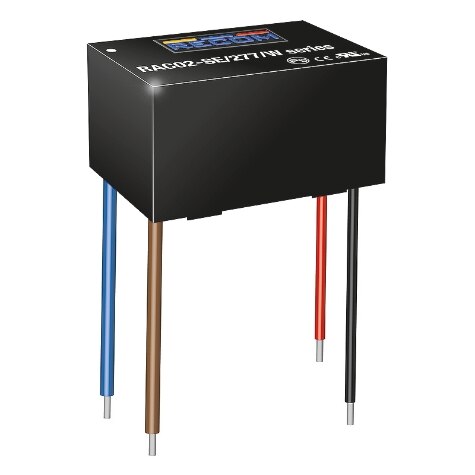

Recom Power RAC02-3.3SE/277/W	3000 V	67 %	1	Enclosed	Chassis Mount	CE cURus	305 VAC	85 VAC	-40 °C	85 °C	0.7 in	33.7 mm	1.33 in	0.96 in	24.4 mm	17.8 mm	DC Input Capable Universal Input	Household Appliances ITE (Commercial)	2 W	3.3 V	600 mA
Recom Power RAC02-05SE/277/W	3000 V	70 %	1	Enclosed	Chassis Mount	CE cURus	305 VAC	85 VAC	-40 °C	85 °C	0.7 in	33.7 mm	1.33 in	0.96 in	24.4 mm	17.8 mm	DC Input Capable Universal Input	Household Appliances ITE (Commercial)	2 W	5 V	400 mA
Recom Power RAC02-24SE/277/W	3000 V	76 %	1	Enclosed	Chassis Mount	CE cURus	305 VAC	85 VAC	-40 °C	85 °C	0.7 in	33.7 mm	1.33 in	0.96 in	24.4 mm	17.8 mm	DC Input Capable Universal Input	Household Appliances ITE (Commercial)	2 W	24 V	83 mA
