AA120U Series
Manufacturer: Phihong USA
Beta
⌘K

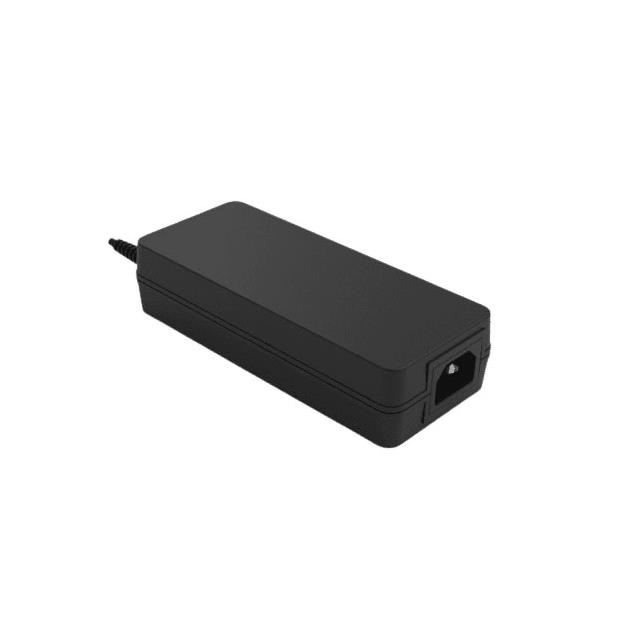

DESKTOP AC ADAPTERS 120W 54V 2.22A C14 INPUT 2.5X5.5 RA OUT
| Part | Input Connector | Output Connector [diameter] | Output Connector | Output Connector [z] | No Load Power Consumption | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Polarization | Voltage - Input [Max] | Voltage - Input [Min] | Cord Length | Cord Length | Operating Temperature [Max] | Operating Temperature [Min] | Region Utilized | Applications | Power (Watts) | Form | Efficiency | Voltage - Output | Input Type | Standard Number | Approval Agency | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | IEC 320-C14 | 2.5 mm 5.5 mm | Barrel Plug R/A | 10 mm | 74.1 mW | 1.38 in | 65 mm | 2.56 in | 35 mm | 5.9 " | 150 mm | Positive Center | 264 VAC | 90 VAC | 1.5 m | 59 in | 40 °C | 0 °C | International | ITE (Commercial) | 120 W | Desktop (Class I) | CoC Tier 2 Level VI | 54 V | Cord (Sold Separately) | 62368-1 | CE cULus UKCA | 2.22 A |
