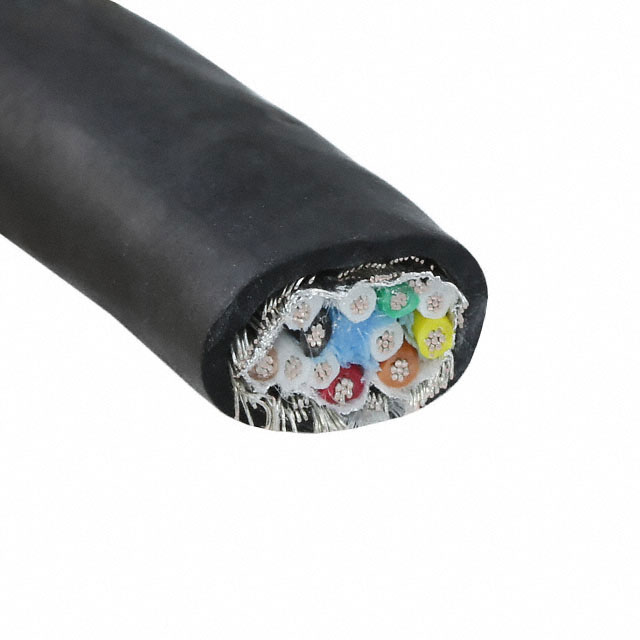

45126 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-CONDUCTOR CABLES 22 AWG 6 CONDUCTOR 300V SUPRASHIELD, TPE 100 FT SPOOL BLACK
| Part | Shield Coverage | Shield Material | Number of Conductors | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket Color | Ratings | Jacket (Insulation) Material | Shield Type | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Conductor Insulation | Conductor Insulation | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 12 | 300 VDC | 11.41 mm | 0.449 " | Biological Compatibility Drain Wire Rip Cord | Black | ISO 10993 | Thermoplastic Elastomer (TPE) | Braid Foil | Multi-Pair | 1.397 mm | 0.055 in | 100 ft | 30.5 m | 30 AWG | 7 | 125 °C | -50 °C | 22 AWG | TPE | Thermoplastic Elastomer | Copper Tinned | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 12 | 300 VDC | 11.41 mm | 0.449 " | Biological Compatibility Drain Wire Rip Cord | Slate | ISO 10993 | Thermoplastic Elastomer (TPE) | Braid Foil | Multi-Pair | 1.397 mm | 0.055 in | 30 AWG | 7 | 125 °C | -50 °C | 22 AWG | TPE | Thermoplastic Elastomer | Copper Tinned | 304.8 m | 1000 ft |
