G51M07-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 5P GOLD SLDR CUP
| Part | Connector Type | Shielding | Mounting Feature | Contact Material | Current Rating (Amps) | Shell Material | Applications | Ingress Protection | Mounting Type | Color | Number of Positions | Insert Material | Contact Finish - Mating | Fastening Type | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Orientation | Voltage Rating | Material Flammability Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Receptacle Female Sockets | Unshielded | Bulkhead - Front or Rear Side Nut | Brass | 7.5 A | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Panel Mount | Gray Green | 5 | Polyetheretherketone (PEEK) | Gold | Detent Lock Push-Pull | Plastic | 120 °C | -50 °C | 1 | 0 | ||||
Receptacle Female Sockets | Unshielded | Bulkhead - Front or Rear Side Nut | Brass | 4 A | Polysulfone (PSU) | Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Panel Mount | Gray Red | 12 | Polyetheretherketone (PEEK) | Gold | Detent Lock Push-Pull | Plastic | 120 °C | -50 °C | 1 | 0 | 25 V | UL94 V-0 | ||
Receptacle Female Sockets | Unshielded | Bulkhead - Front or Rear Side Nut | Brass | 4 A | Polysulfone (PSU) | Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Panel Mount Through Hole | Blue Gray | 12 | Polyetheretherketone (PEEK) | Gold | Detent Lock Push-Pull | Plastic | 120 °C | -50 °C | 1 | 0 | 25 V | UL94 V-0 | Solder | |
Receptacle Female Sockets | Unshielded | Bulkhead - Front or Rear Side Nut | Brass | 4.55 A | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Panel Mount | Gray White | 7 | Polyetheretherketone (PEEK) | Gold | Detent Lock Push-Pull | Plastic | 120 °C | -50 °C | 1 | 0 | ||||
Receptacle Female Sockets | Unshielded | Bulkhead - Front or Rear Side Nut | Brass | 4 A | Polysulfone (PSU) | Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Panel Mount | Gray Green | 12 | Polyetheretherketone (PEEK) | Gold | Detent Lock Push-Pull | Plastic | 120 °C | -50 °C | 1 | 0 | 25 V | UL94 V-0 | ||
Receptacle Female Sockets | Unshielded | Bulkhead - Front or Rear Side Nut | Brass | 3.85 A | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Panel Mount | Gray Red | 8 | Polyetheretherketone (PEEK) | Gold | Detent Lock Push-Pull | Plastic | 120 °C | -50 °C | 1 | 0 | ||||
Receptacle Female Sockets | Unshielded | Bulkhead - Front or Rear Side Nut | Brass | 10 A | Polysulfone (PSU) | Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Panel Mount | Blue Gray | 4 | Polyetheretherketone (PEEK) | Gold | Detent Lock Push-Pull | Plastic | 120 °C | -50 °C | 1 | 0 | 37 V | UL94 V-0 | ||

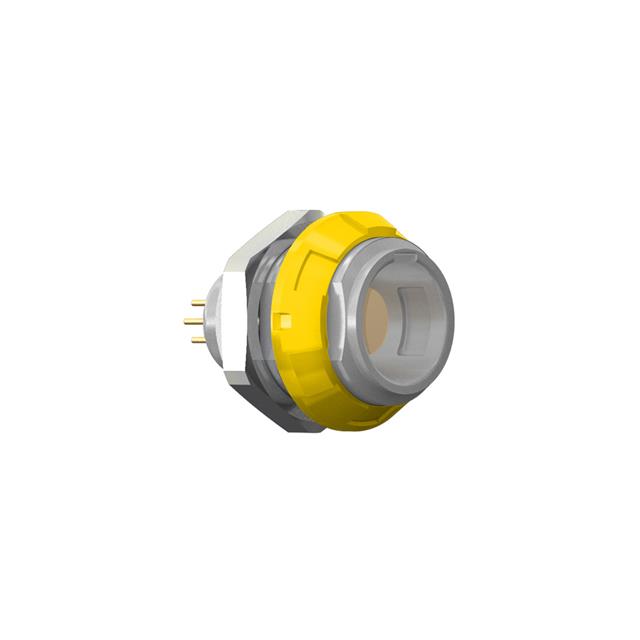

Receptacle Female Sockets | Unshielded | Bulkhead - Front or Rear Side Nut | Brass | 10 A | Polysulfone (PSU) | Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Panel Mount | Gray Yellow | 5 | Polyetheretherketone (PEEK) | Gold | Detent Lock Push-Pull | Plastic | 120 °C | -50 °C | 1 | 0 | 25 V | UL94 V-0 | Crimp | |
Receptacle Female Sockets | Unshielded | Bulkhead - Front or Rear Side Nut | Brass | 2.75 A | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Panel Mount | Gray White | 9 | Polyetheretherketone (PEEK) | Gold | Detent Lock Push-Pull | Plastic | 120 °C | -50 °C | 1 | 0 | ||||
Receptacle Female Sockets | Unshielded | Bulkhead - Front or Rear Side Nut | Brass | 4 A | Polysulfone (PSU) | Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Panel Mount Through Hole | Gray Red | 9 | Polyetheretherketone (PEEK) | Gold | Detent Lock Push-Pull | Plastic | 120 °C | -50 °C | 1 | 0 | 33 V | UL94 V-0 | Solder |
