LXS8-PW Series
Manufacturer: Lumileds
Beta
⌘K

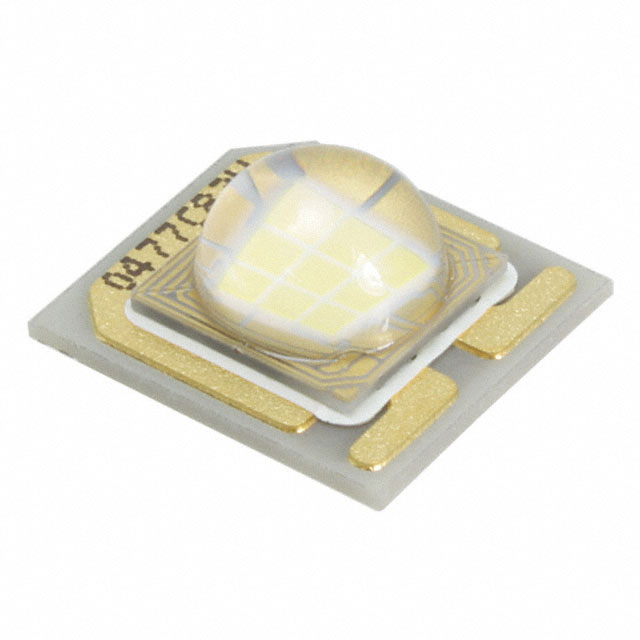

LED MOD LUXEON S1000 WH SQ
| Part | CRI (Color Rendering Index) | Temperature - Test | Color | Current - Max [Max] | Lens Type | Luminous Flux @ Current/Temperature | Height [z] | Type | Viewing Angle | Light Emitting Surface (LES) [diameter] | Lumens/Watt @ Current - Test | Voltage - Forward (Vf) (Typ) | CCT (K) | Size / Dimension [x] | Size / Dimension [y] | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 80 | 85 °C | Neutral White | 900 mA | Domed | 1450 lm | 6.09 mm | LED Module | 105 ° | 8.06 mm | 81 lm/W | 25.6 V | 4000 K | 13.87 mm | 12.87 mm | Square |
 Lumileds | 80 | 85 °C | Warm White | 900 mA | Domed | 1390 lm | 6.09 mm | LED Module | 105 ° | 8.06 mm | 78 lm/W | 25.6 V | 3000 K | 13.87 mm | 12.87 mm | Square |
