86130341 Series

Catalog

CONN HEADER VERT 34POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Shape	Features	Contact Finish - Mating	Fastening Type	Voltage Rating	Contact Finish - Post	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Shrouding	Insulation Color	Termination	Style	Contact Length - Mating	Contact Length - Mating [x]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Type	Material Flammability Rating	Insulation Height	Insulation Height	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]
Amphenol ICC (FCI) 86130341024345E1LF	0.1 in	2.54 mm	2	Circular	Keying Slot	Gold or Gold-Palladium	Push-Pull	250 VDC	Tin	Copper Alloy	2.54 mm	0.1 in	All	Shrouded - 4 Wall	Gray	Solder	Board to Cable/Wire	6.1 mm	0.24 in	Header	-55 °C	125 °C	34	Polybutylene Terephthalate (PBT)	0.114 in	2.9 mm	Male Pin	UL94 V-0	14.15 mm	0.557 in	Through Hole
Amphenol ICC (FCI) 86130341013345E1LF	0.1 in	2.54 mm	2	Circular	Keying Slot	Gold or Gold-Palladium	Push-Pull	250 VDC	Tin	Copper Alloy	2.54 mm	0.1 in	All	Shrouded - 4 Wall	Gray	Solder	Board to Cable/Wire	6.1 mm	0.24 in	Header	-55 °C	125 °C	34	Polybutylene Terephthalate (PBT)			Male Pin	UL94 V-0	8.75 mm	0.344 in	Through Hole Right Angle	0.165 in	4.19 mm

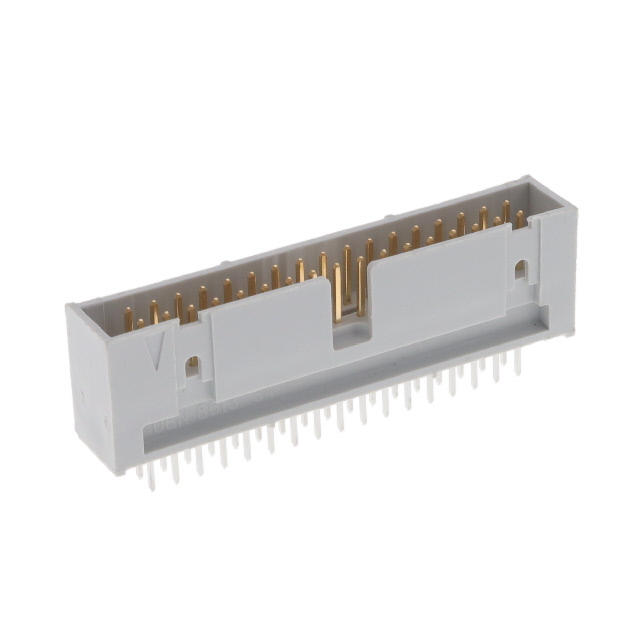

Amphenol ICC (FCI) 86130341014345E1LF	0.1 in	2.54 mm	2	Circular	Keying Slot	Gold or Gold-Palladium	Push-Pull	250 VDC	Tin	Copper Alloy	2.54 mm	0.1 in	All	Shrouded - 4 Wall	Gray	Solder	Board to Cable/Wire	6.1 mm	0.24 in	Header	-55 °C	125 °C	34	Polybutylene Terephthalate (PBT)	0.171 in	4.35 mm	Male Pin	UL94 V-0	14.15 mm	0.557 in	Through Hole
