M-100 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

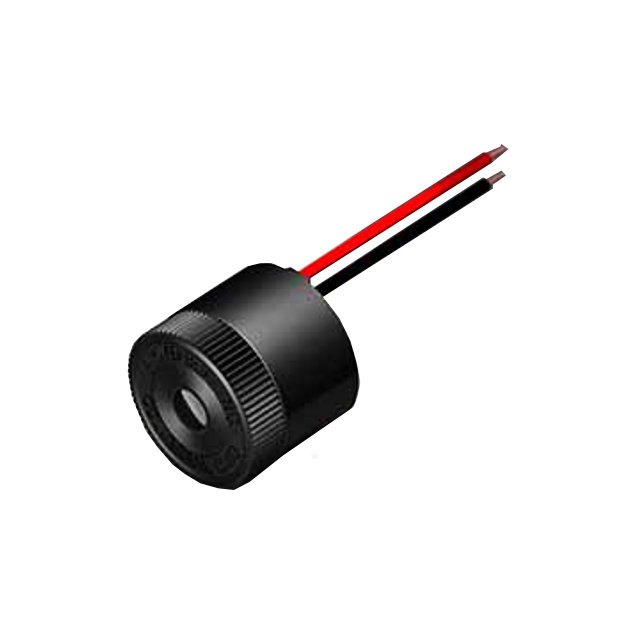

BUZZER PIEZO 26.16MM PNL MNT
| Part | Operating Mode | Operating Temperature (Min) | Operating Temperature (Max) | Input Type | Current - Supply (Min) | Current - Supply (Max) | Size / Dimension Diameter | Approval Agency | Height - Seated (Max) | Sound Pressure Level (SPL) | Port Location | Ingress Protection IP Rating | Ingress Protection Description | Frequency | Driver Circuitry | Mounting Type | Voltage Range (Max) | Voltage Range (Min) | Technology | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Single Tone | -20 °C | 65 °C | DC | 10 mA | 60 mA | 1.03 in | UL UR | 0.88 in | 102 dB | Top | IP68 | Dust Tight Waterproof | 2.9 kHz | Indicator Internally Driven | Panel Mount | 6 V | 3 V | Piezo | Wire Leads |
