RSB1A Series

Catalog

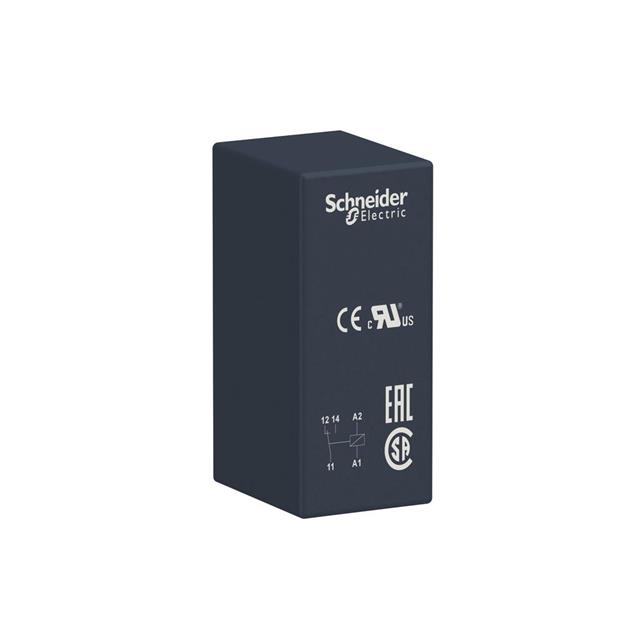

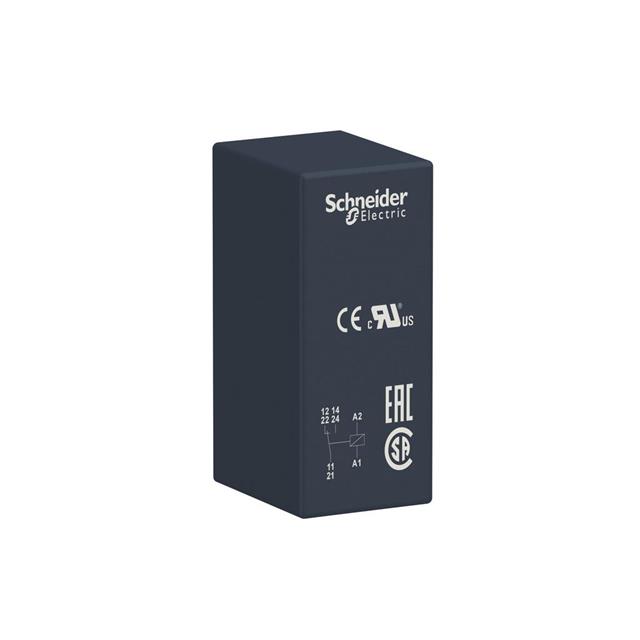

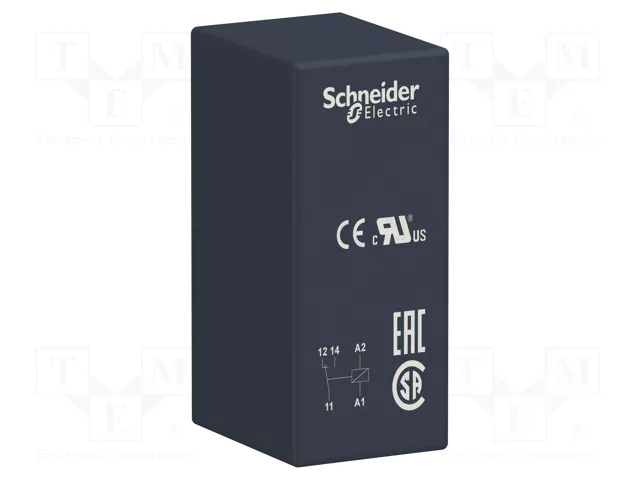

HARMONY, INTERFACE PLUG-IN RELAY

Part	Coil Resistance	Approval Agency	Contact Material	Release Time	Coil Voltage	Operate Time	Coil Type	Mounting Type	Relay Type	Must Operate Voltage	Contact Rating (Current)	Contact Form	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Load - Max Switching	Must Release Voltage	Switching Voltage	Coil Current	Switching Voltage [Max]
SCHNEIDER ELECTRIC RSB1A120P7S	38.5 kOhms	CSA EAC UL	Silver Nickel (AgNi)	10 ms	230 VAC	12 ms	Non Latching	DIN Rail	General Purpose	184 VAC	12 A	SPDT (1 Form C)	Screw Terminal	70 °C	-40 C	3600 W 4800 VA	34.5 VAC	300 VDC 400 VAC	6 mA
SCHNEIDER ELECTRIC RSB1A160F7S	10.2 kOhms	CSA EAC UL	Silver Nickel (AgNi)	10 ms	120 VAC	12 ms	Non Latching	Socketable	General Purpose	102 VAC	16 A	SPDT (1 Form C)	Spring Terminal	70 °C	-40 C	4800 W 6400 VA	18 VAC	300 VDC 400 VAC	11.8 mA
SCHNEIDER ELECTRIC RSB1A160F7	8.36 kOhms	CSA EAC UL	Silver Nickel (AgNi)	20 ms	120 VAC	20 ms	Non Latching	Socketable	General Purpose		16 A	SPDT (1 Form C)	Plug In	70 °C	-40 C	448 W 4000 VA	18 VAC		14.4 mA	28 VDC 250 VAC

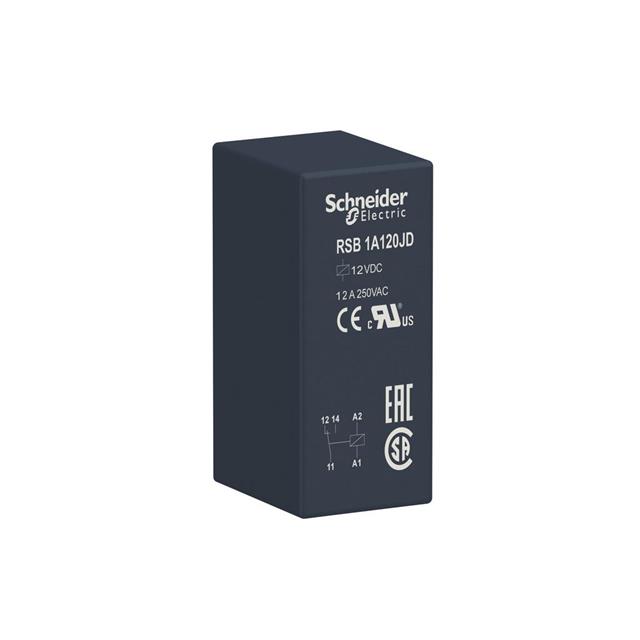

SCHNEIDER ELECTRIC RSB1A120JD	360 Ohms	CSA EAC UL	Silver Nickel (AgNi)	20 ms	12 VDC	20 ms	Non Latching	Socketable	General Purpose		12 A	SPDT (1 Form C)	Plug In	85 °C	-40 C	3600 VA	1.2 VDC		33.3 mA	300 VDC
SCHNEIDER ELECTRIC RSB1A120U7	33 kOhms	CSA EAC UL	Silver Nickel (AgNi)	20 ms	240 VAC/DC	20 ms	Non Latching	Socketable	General Purpose		12 A	SPDT (1 Form C)	Plug In	70 °C	-40 C	3600 VA	36 VAC		7.3 mA	300 VDC
SCHNEIDER ELECTRIC RSB1A160ND	9 kOhms	CSA EAC UL	Silver Nickel (AgNi)	20 ms	60 VDC	20 ms	Non Latching	Socketable	General Purpose	42 VDC	16 A	SPDT (1 Form C)	Plug In	85 °C	-40 C	4000 VA 4800 W	6 VDC	250 VAC 300 VDC	6.7 mA
SCHNEIDER ELECTRIC RSB1A160E7	1.54 kOhms	CSA EAC UL	Silver Nickel (AgNi)	20 ms	48 VAC	20 ms	Non Latching	Socketable	General Purpose	38.4 VAC	16 A	SPDT (1 Form C)	Plug In	70 °C	-40 C	4000 VA 4800 W	7.2 VAC	250 VAC 300 VDC	31.2 mA
SCHNEIDER ELECTRIC RSB1A160JDS	360 Ohms	CSA EAC UL	Silver Nickel (AgNi)	4 ms	12 VDC	9 ms	Non Latching	DIN Rail	General Purpose	9.6 VDC	16 A	SPDT (1 Form C)	Spring Terminal	70 °C	-40 C	448 W 4000 VA	1.2 VDC		33.3 mA	28 VDC 250 VAC
SCHNEIDER ELECTRIC RSB1A120FD	30.25 kOhms	CSA EAC UL	Silver Nickel (AgNi)	20 ms	110 VDC	20 ms	Non Latching	Socketable	General Purpose	88 VDC	12 A	SPDT (1 Form C)	Plug In	85 °C	-40 C	3000 VA 3600 W	11 VDC	250 VAC 300 VDC	3.6 mA

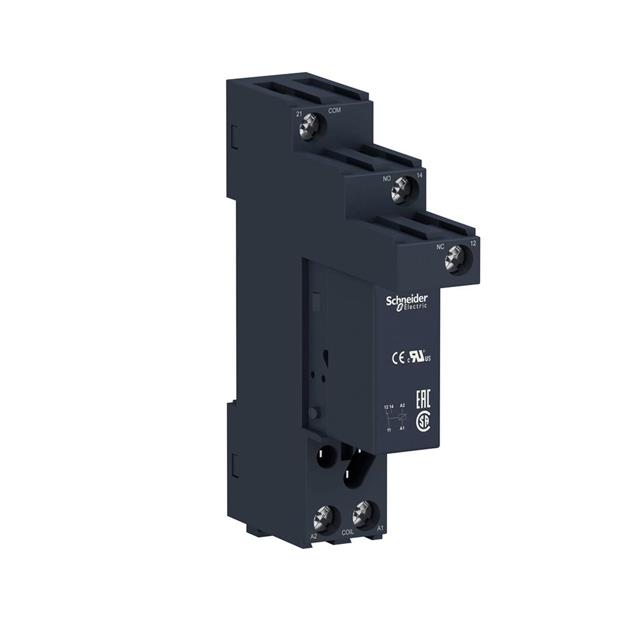

SCHNEIDER ELECTRIC RSB1A160P7S	38.5 kOhms	CSA EAC UL	Silver Nickel (AgNi)	10 ms	230 VAC	12 ms	Non Latching	DIN Rail	General Purpose	184 VAC	16 A	SPDT (1 Form C)	Screw Terminal	70 °C	-40 C	4800 W 6400 VA	34.5 VAC	300 VDC 400 VAC	6 mA
